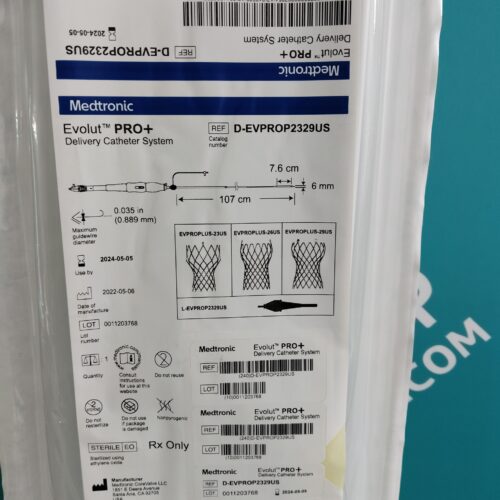

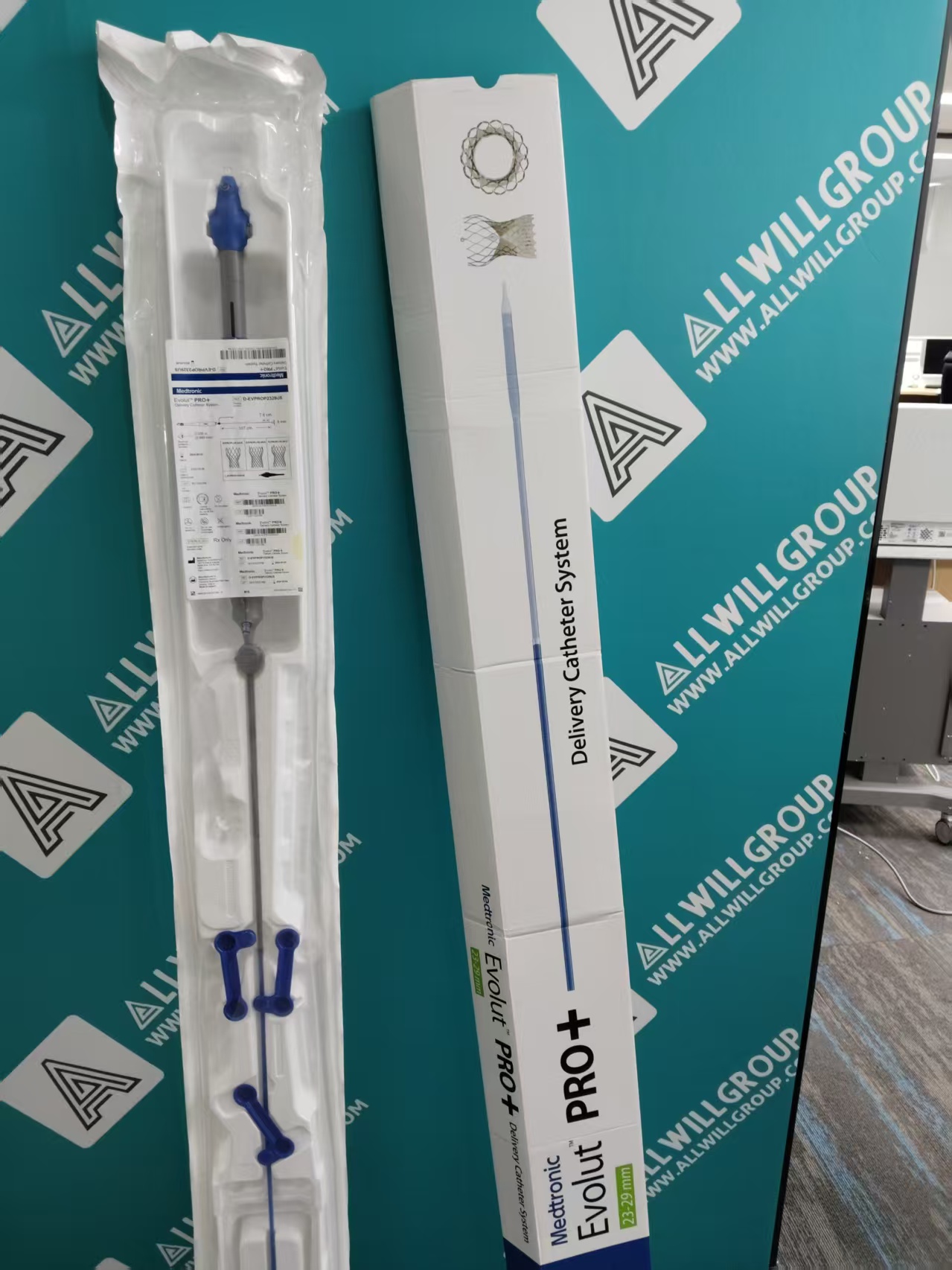

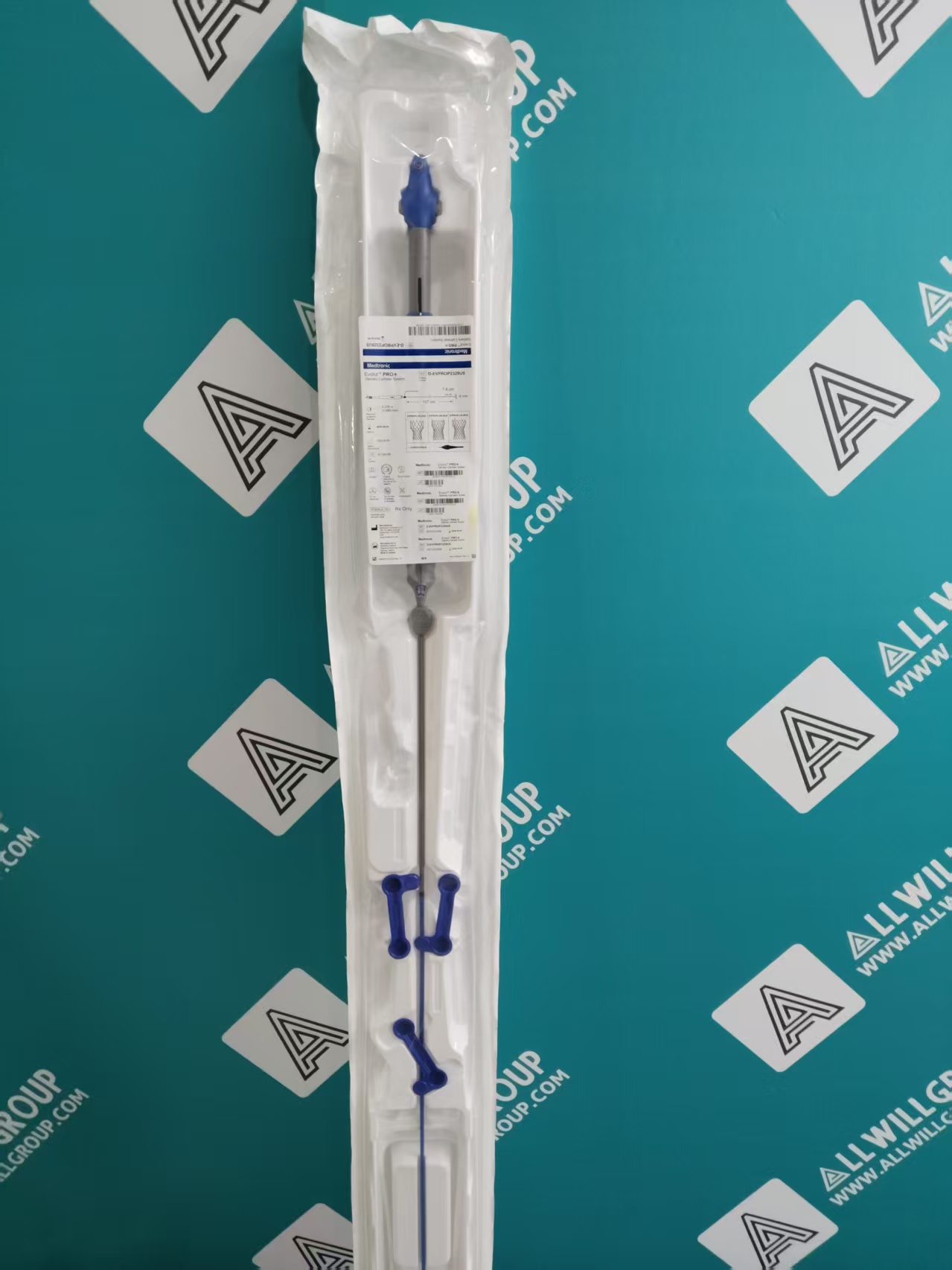

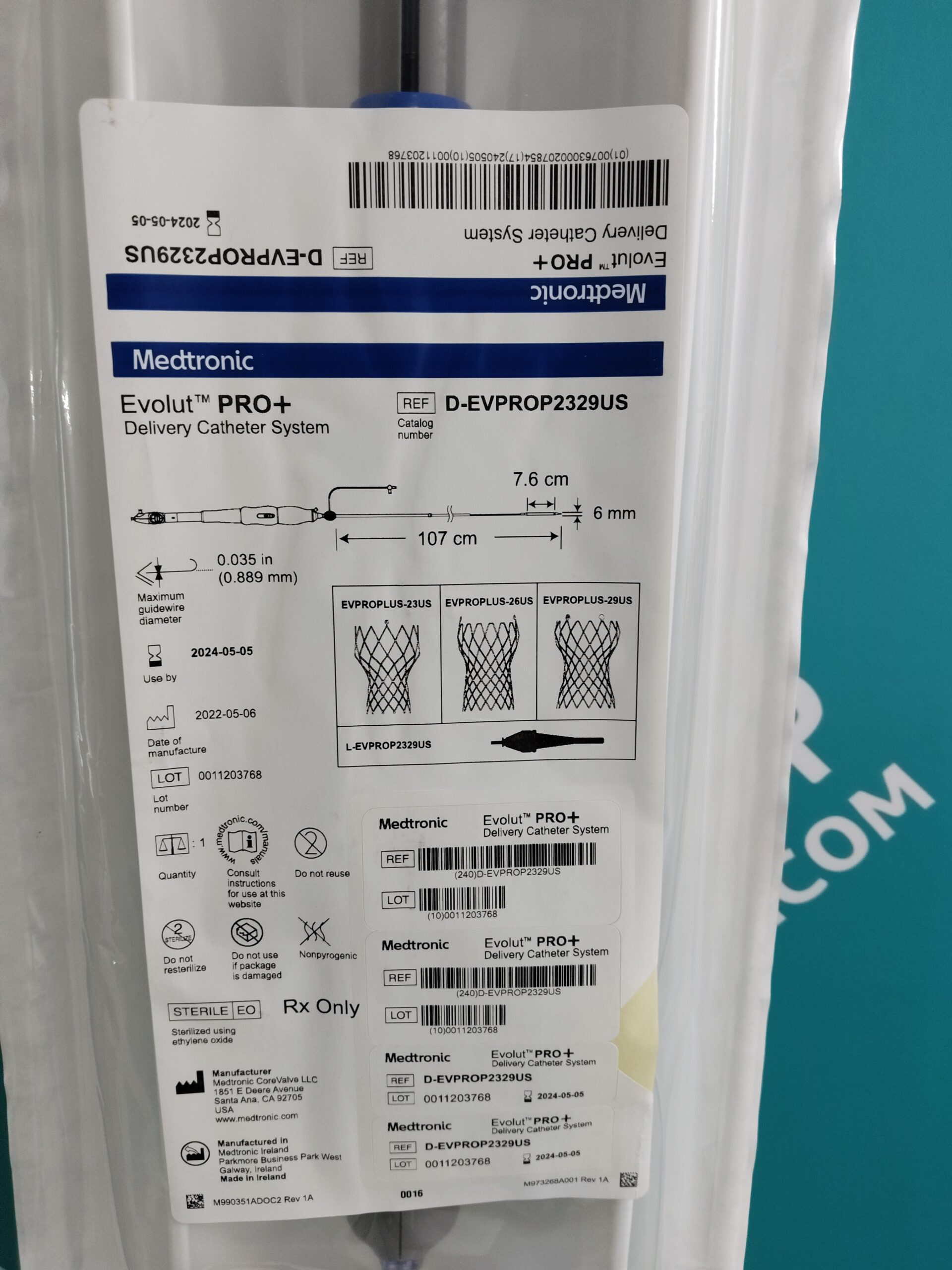

Medtronic D-EVPROP2329US Evolut™ PRO+ Delivery Catheter System

Condition: New
Part #: D-EVPROP2329US

$4,220.00

SKU: D-EVPROP2329US Categories: ,
MAKE AN OFFER
Description

The Medtronic Evolut™ PRO+ Delivery Catheter System represents a pinnacle in structural heart intervention, specifically engineered for the precise deployment of self-expanding transcatheter aortic valves. This advanced platform is a cornerstone of Transcatheter Aortic Valve Replacement (TAVR), designed to treat patients suffering from severe symptomatic aortic stenosis or the failure of previous bioprosthetic valves.

By integrating a low-profile design with a supra-annular valve architecture, the Evolut™ PRO+ system allows clinicians to navigate complex vascular anatomies while ensuring optimal hemodynamic performance. At ALLWILL, we bridge the gap between advanced technology and clinical necessity. Through our Smart Center, each device undergoes rigorous inspection and refurbishment protocols, ensuring that healthcare providers receive verified, high-performance equipment through our ALLWILLmatch sourcing platform.


Core Technology: The InLine™ Sheath Advantage

The defining technical achievement of the Evolut™ PRO+ is its 14 Fr equivalent delivery profile. This is made possible by the integrated EnVeo™ InLine™ Sheath technology. Unlike traditional systems that require a separate, bulky introducer sheath, the InLine™ system incorporates the sheath directly onto the catheter. This reduces the total arterial puncture size, significantly lowering the risk of vascular site complications and allowing the procedure to be performed in patients with vessel diameters as small as 5.0 mm.

Mechanism of Action

The system operates on a controlled, multi-stage deployment mechanism:

  1. Tracking: The 107 cm working length catheter is navigated through the femoral artery to the aortic arch.

  2. Positioning: The supra-annular valve design is positioned within the native or failing bioprosthetic valve.

  3. Deployment: The self-expanding nitinol frame is gradually released from the 6.0 mm capsule.

  4. Recapturability: A critical safety feature of the system is the ability to fully recapture and reposition the valve if the initial placement is not optimal, ensuring maximum procedural success.


Key Clinical Applications

The Evolut™ PRO+ (Model D-EVPROP2329US) is indicated for a broad spectrum of structural heart conditions:

  • Severe Native Aortic Stenosis: For patients across all risk categories (low, intermediate, high, and extreme).

  • Valve-in-Valve (ViV) Procedures: Specifically for treating patients with failing surgical bioprosthetic valves.

  • Small Annulus Patients: The supra-annular design is particularly effective for patients where a larger effective orifice area (EOA) is required to prevent patient-prosthesis mismatch.

Key Advantages

  • Superior Hemodynamics: The supra-annular valve placement ensures the leaflets function above the native annulus, maximizing blood flow.

  • Enhanced Deliverability: An outer porcine pericardial wrap on the compatible valves increases the surface area of contact with the native anatomy, reducing paravalvular leak (PVL).

  • Procedural Efficiency: The 30 cm integrated InLine™ sheath simplifies the workflow by reducing the number of steps required for vascular access.

  • Anatomical Versatility: Comprehensive compatibility with 23 mm, 26 mm, and 29 mm valve sizes allows for a customized fit for diverse patient populations.


Technical Specifications

Feature Specification
Model Number D-EVPROP2329US
Manufacturer Medtronic
Delivery Profile 14 Fr Equivalent
Capsule Outer Diameter 6.0 mm
Working Length 107 cm
Integrated Sheath Length 30 cm
Minimum Vessel Diameter 5.0 mm
Valve Compatibility 23 mm, 26 mm, 29 mm
Mechanism Self-Expanding / Recapturable

Frequently Asked Questions

What are the primary benefits of the 14 Fr EnVeo InLine sheath?

The 14 Fr EnVeo InLine sheath reduces the entry profile of the catheter to a 6.0 mm outer diameter. This allows clinicians to treat patients with smaller or more calcified femoral arteries (down to 5.0 mm) while minimizing the risk of major vascular complications and bleeding at the access site.

Which valve sizes are compatible with the D-EVPROP2329US delivery system?

This specific delivery catheter model is optimized for the 23 mm, 26 mm, and 29 mm Evolut™ PRO+ valves. This range allows for the treatment of a wide variety of aortic annulus sizes, ensuring that the majority of adult patient anatomies can be accommodated during TAVR procedures.

Can the Evolut™ PRO+ system be used for Valve-in-Valve procedures?

Yes, the Evolut™ PRO+ is highly effective for Valve-in-Valve (ViV) applications. Its supra-annular design is particularly beneficial when placed inside a failing surgical bioprosthetic valve, as it helps maintain a larger effective orifice area and lower pressure gradients compared to intra-annular valve options.

What makes the Evolut™ PRO+ “recapturable”?

The system is designed with a controlled deployment handle that allows the operator to deploy the valve up to a certain point (typically 80%) and then fully recapture it into the capsule if the position is unsatisfactory. This significantly enhances safety by allowing for precise adjustment before final release.

How does ALLWILL ensure the quality of refurbished Medtronic delivery systems?

Through our Smart Center, ALLWILL subjects every device to a comprehensive multi-point inspection and refurbishment process. We verify structural integrity and functional performance against original manufacturer standards, ensuring that healthcare providers receive reliable, high-quality equipment that meets all necessary clinical safety requirements.

What is the significance of the supra-annular valve design?

The supra-annular design means the prosthetic valve leaflets sit above the native aortic annulus. This architecture typically results in lower mean pressure gradients and larger effective orifice areas, which is vital for long-term valve durability and improved exercise tolerance in patients with severe aortic stenosis.
