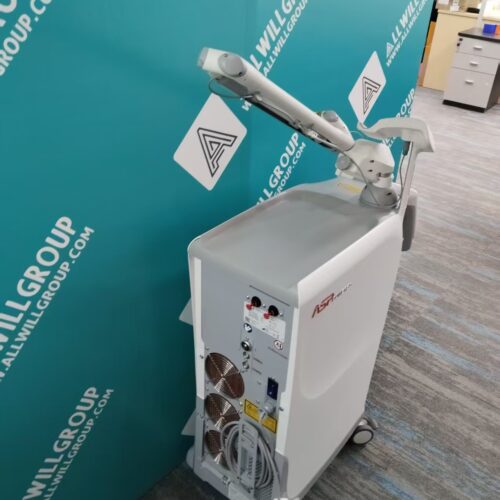

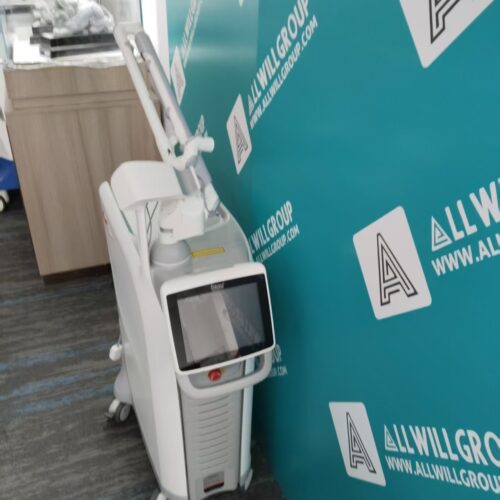

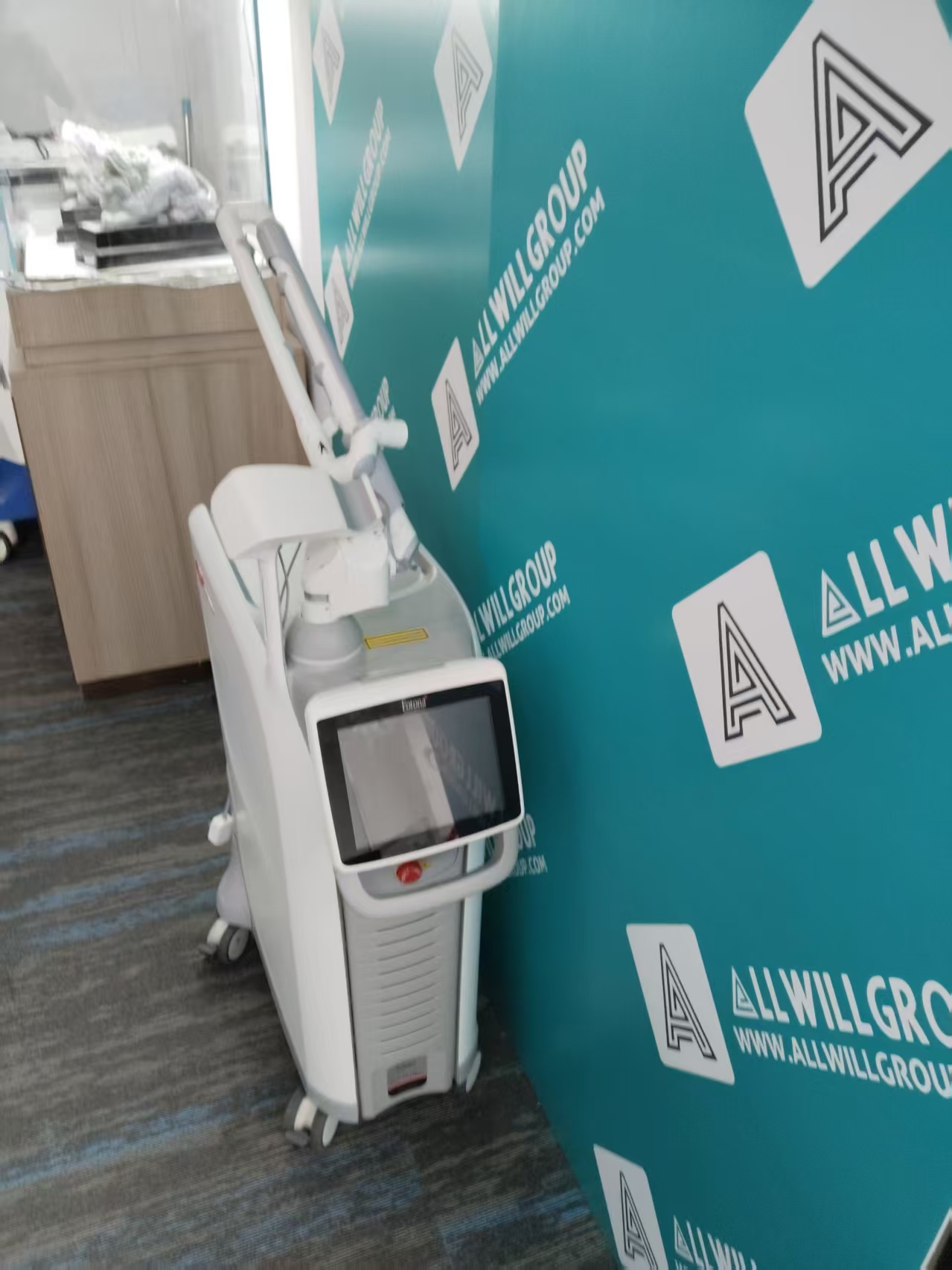

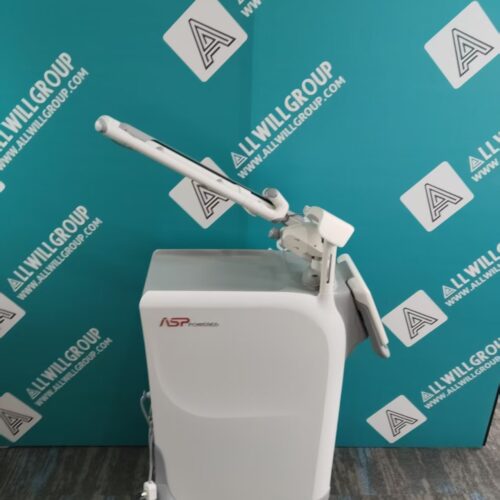

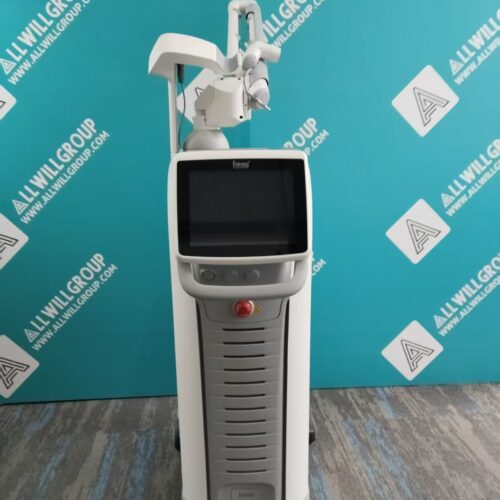

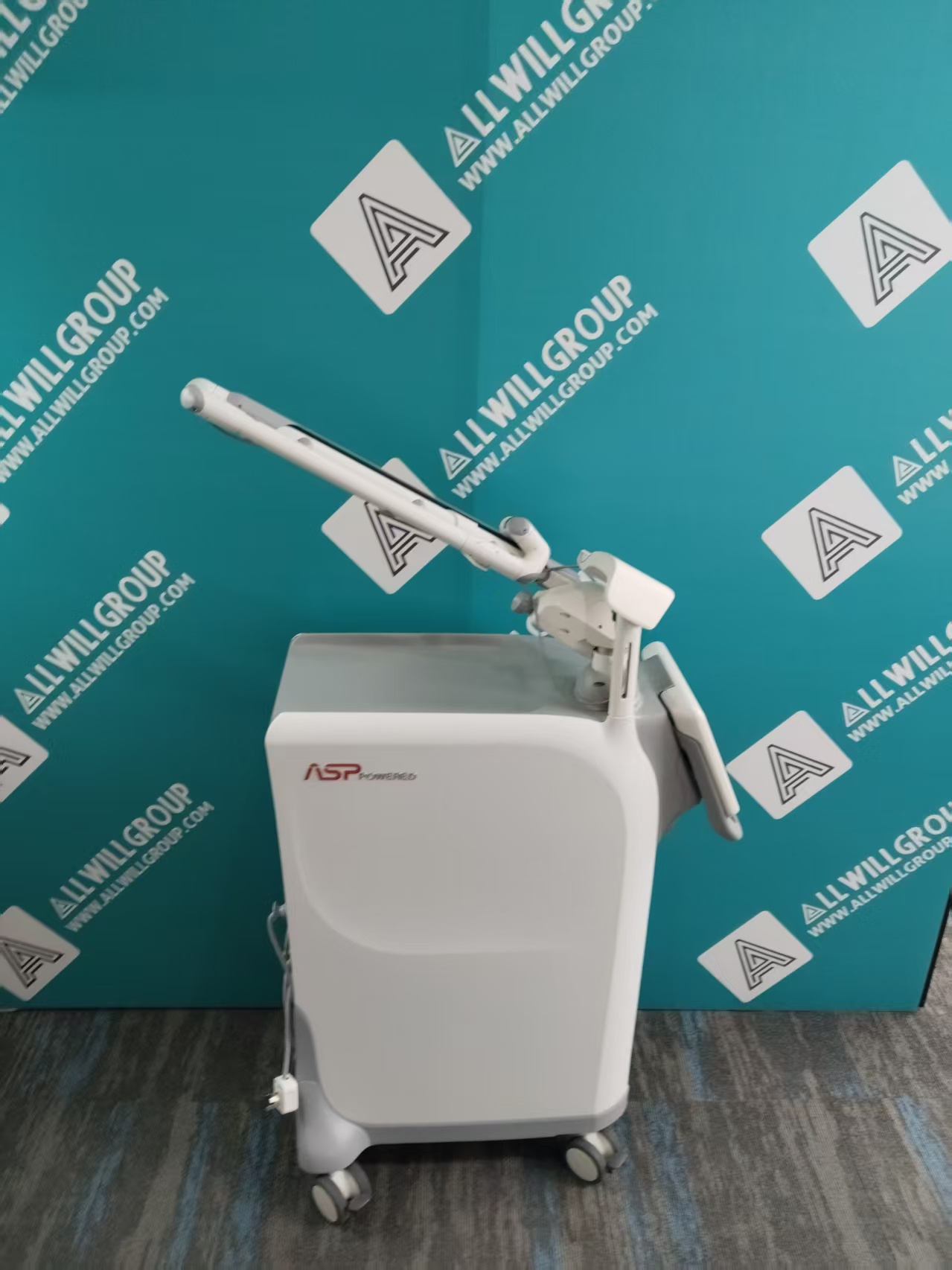

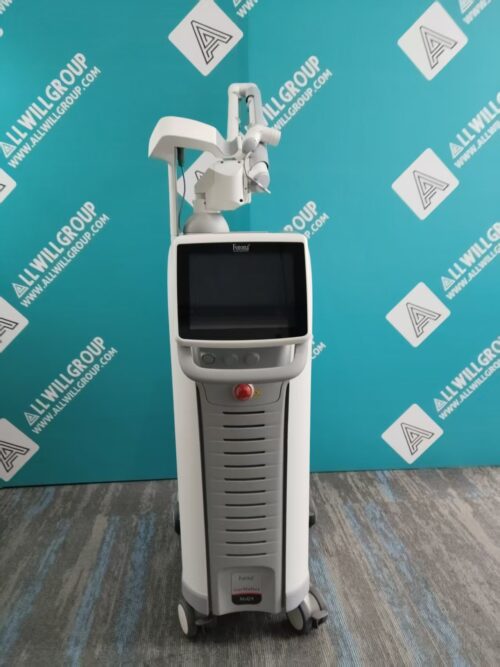

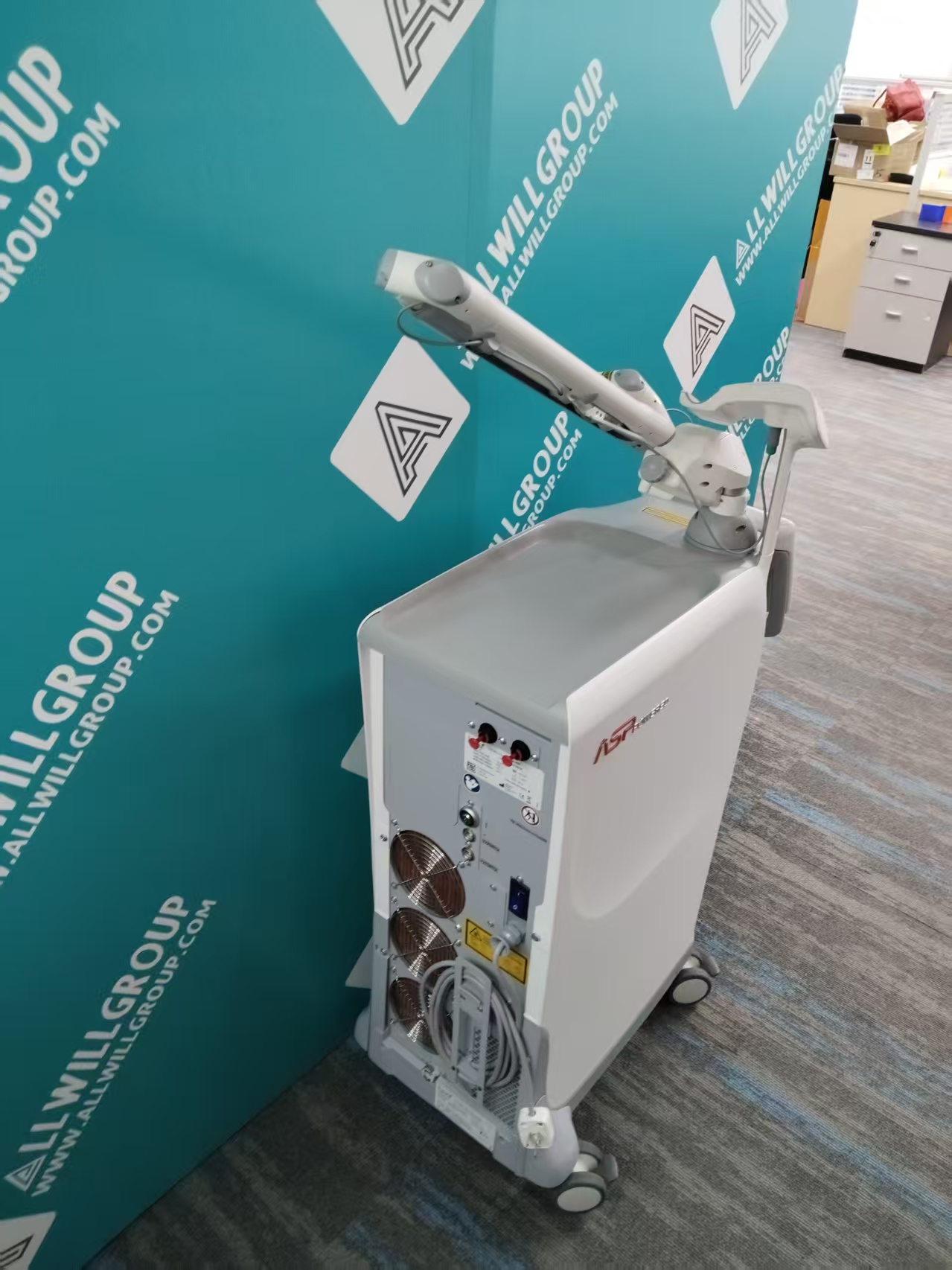

Fotona STARWALKER M031-3A/2 MAQX

Condition: New
Part #: M031-3A/2 MAQX

$76,200.00

SKU: M031-3A/2 MAQX Categories: ,
MAKE AN OFFER
Description

The Fotona StarWalker® MaQX (Model M031-3A/2 MAQX) represents the third generation of high-performance Q-switched laser systems. By combining the high energy of nanosecond pulses with the ultra-short peak power of picosecond-like bursts, the MaQX provides a versatile, robust solution for advanced aesthetic medicine. This system is engineered for practitioners who require precision, safety, and the power to treat even the most stubborn pigmentary and structural skin concerns.


Core Technology: ASP and MaQX Modalities

At the heart of the StarWalker® MaQX is Fotona’s breakthrough ASP (Adaptive Structured Pulse) technology. Unlike traditional lasers, ASP allows the system to adapt the temporal shape of the laser pulse to match the specific bio-interaction required for the target tissue.

  • MaQX (Maximum Quality) Pulses: The system can deliver up to 10 Joules of Q-switched energy. This is achieved through a unique pulse-stacking mechanism that produces a high-energy effect while maintaining the safety profile of a Q-switched system.

  • Wavelength Versatility: It features four essential wavelengths—1064nm, 532nm, 585nm, and 650nm—allowing for the precise targeting of various chromophores, including deep-seated melanin, hemoglobin, and a full spectrum of tattoo inks.

  • FracTAT® Technology: This patented fractional Q-switched modality creates micro-channels in the skin, which is particularly effective for breaking up scar tissue and allowing gases to escape during tattoo removal, significantly reducing the “frosting” effect and speeding up clearance.


Mechanism of Action

The StarWalker® MaQX utilizes the photoacoustic effect. By delivering high-energy pulses in incredibly short durations, the laser creates a mechanical shockwave that shatters pigment particles into tiny fragments without overheating the surrounding tissue.

  1. Selective Photothermolysis: Different wavelengths target specific colors (e.g., 1064nm for black/blue ink, 532nm for red/orange).

  2. Photoacoustic Shattering: The MaQX pulse modality creates a powerful acoustic impact, breaking down melanin or ink into particles small enough for the body’s immune system to naturally flush away.

  3. Collagen Induction: For rejuvenation and acne scars, the fractional MaQX pulses trigger a controlled healing response, stimulating the production of new collagen and elastin fibers.


Clinical Applications and Uses

The StarWalker® MaQX is a multi-purpose workhorse capable of addressing a broad spectrum of dermatological indications:

  • Tattoo Removal: Effective for complex, multi-colored tattoos, including stubborn greens and blues.

  • Pigmented Lesions: Treatment of melasma, sunspots, freckles, and Nevus of Ota.

  • Vascular Treatments: Ablation of vascular lesions and reduction of facial redness.

  • Skin Rejuvenation: Non-ablative tightening, tone improvement, and “Hollywood Peel” carbon treatments.

  • Acne & Scar Revision: Focused treatment for active acne and the smoothing of hypertrophic or atrophic scars.


Key Advantages for the Practice

  • Exceptional Energy Output: With up to 10J of energy, it offers the highest Q-switched power on the market for faster clearance of pigments.

  • Minimal Downtime: The photoacoustic approach minimizes thermal damage, allowing patients to return to daily activities quickly.

  • Automatic Recognition: Intelligent handpieces automatically communicate with the system to ensure correct parameters and enhanced safety.

  • Intuitive Interface: A user-friendly touchscreen allows for rapid setup and streamlined treatment transitions.


The Treatment Process

While every patient protocol differs, the typical workflow for a StarWalker® MaQX procedure involves:

  1. Consultation: Assessment of skin type (Fitzpatrick scale) and target lesion depth.

  2. Preparation: Cleansing of the area; topical numbing may be applied for high-energy tattoo removal.

  3. Procedure: The practitioner selects the appropriate handpiece and wavelength. The system’s uniform beam profile ensures consistent coverage.

  4. Post-Care: Application of a cooling gel or soothing cream. Patients are advised to use high-SPF sun protection during the healing phase.


Technical Specifications

Feature Specification
Model StarWalker® MaQX (M031-3A/2)
Wavelengths 1064nm, 532nm, 585nm, 650nm
Max Energy 10 Joules (MaQX Mode)
Pulse Technology ASP (Adaptive Structured Pulse)
Special Modality FracTAT® (Fractional Q-Switched)
Weight 68 kg
Power Supply Universal (100–240V, 50/60Hz)
Certification CE Certified

Frequently Asked Questions

What makes the StarWalker MaQX different from traditional Q-switched lasers?

The StarWalker MaQX utilizes patented ASP technology, which allows the pulse to be structured for maximum efficiency. Unlike standard lasers that have a fixed pulse shape, the MaQX modality can stack pulses to deliver much higher energy (up to 10J) safely, providing faster results for pigments and tattoos.

Is the treatment with Fotona StarWalker MaQX painful?

Most patients describe the sensation as similar to the snap of a rubber band. Because the MaQX uses photoacoustic energy rather than purely thermal energy, there is less heat buildup in the skin. This makes the treatment significantly more comfortable than older laser technologies, often requiring no downtime.

How many sessions are typically required for tattoo removal?

The number of sessions depends on the tattoo’s size, age, ink depth, and colors. However, because of the high peak power and FracTAT® technology, the StarWalker MaQX often achieves clearance in fewer sessions than standard lasers. Most patients see significant results within 4 to 8 treatments.

Can this laser safely treat Melasma?

Yes, the StarWalker MaQX is highly effective for Melasma. By using the 1064nm wavelength in a specific MaQX modality, the laser shatters the excess melanin without generating the excessive heat that can often trigger post-inflammatory hyperpigmentation (PIH) in Melasma patients, making it a safer choice.

What is the recovery time after a skin rejuvenation treatment?

For standard rejuvenation and “laser toning,” there is virtually no downtime; patients may experience slight redness for a few hours. More aggressive treatments, such as deep pigment or tattoo removal, may result in minor crusting or swelling for 3–7 days, but daily activities can usually resume immediately.

Is the StarWalker MaQX safe for all skin types?

Thanks to the 1064nm wavelength and ASP technology, the StarWalker MaQX can be safely used on a wide range of Fitzpatrick skin types. The ability to fine-tune the pulse structure allows the practitioner to minimize the risk of burns or pigmentary changes in darker skin tones.
