Ambu aScope™ 5 Cysto HD (Model: 603101000)

Condition: New
Part #: 603101000

$2,000.00

SKU: 603101000 Categories: ,
MAKE AN OFFER
Description

The Ambu aScope™ 5 Cysto HD is a state-of-the-art, sterile, single-use flexible cystoscope engineered to deliver high-definition visualization of the lower urinary tract. Designed to address the critical challenges of modern urology—including infection control and operational efficiency—this 16.2 Fr device eliminates the need for complex reprocessing and the associated risks of cross-contamination.

By combining the maneuverability of a flexible scope with the image clarity of traditional reusable systems, the aScope 5 Cysto HD provides a reliable, “always-ready” solution for clinics and operating rooms. Each package contains five individually wrapped units, ensuring a consistent and predictable workflow for urological teams.


Core Technology

The aScope™ 5 Cysto HD integrates advanced digital imaging with precision mechanical engineering to optimize the procedural experience.

  • HD Imaging Sensor: Features a high-resolution 800×800 px camera, providing sharp, detailed visuals that surpass standard definition models.

  • Advanced Red Contrast (ARC): A proprietary imaging algorithm that enhances red tones, allowing surgeons to more easily distinguish between healthy tissue, vascular structures, and suspicious lesions.

  • Active Deflection: The distal tip offers 210° upward and 120° downward bending, facilitating comprehensive inspection of the bladder dome and neck.

  • Optimal Compatibility: Seamlessly integrates with the Ambu® aView™ 2 Advance and aBox™ 2 display units, offering a plug-and-play digital ecosystem.


Mechanism of Action

The device operates as a complete digital visualization system. Upon insertion into the urethra, the high-intensity LED light source at the distal tip illuminates the mucosal surface. The 800×800 px sensor captures real-time video, which is processed and displayed via the connected Ambu monitor.

The surgeon controls the deflection of the tip using a dedicated thumb lever, enabling the “J-shape” maneuver required to visualize the bladder neck. The 6.6 Fr working channel allows for the simultaneous introduction of irrigation fluids and surgical instruments, maintaining high flow rates even when accessories are in place.


Clinical Applications

The aScope™ 5 Cysto HD is versatile enough for both outpatient diagnostic settings and complex inpatient surgical procedures.

  • Diagnostic Cystoscopy: Mucosal surveillance, investigation of hematuria, and follow-up for bladder cancer.

  • Therapeutic Interventions: Management of kidney and bladder stones (including PCNL), stent removal, and biopsy.

  • Advanced Procedures: Compatible with Holmium YAG and Thulium fiber lasers, as well as high-frequency electrosurgical equipment (HF) for cauterization and tissue resection.

  • Emergency & Consultative Use: Ideal for bedside procedures or emergency departments where immediate access to a sterile scope is critical.


Key Advantages

  • Superior Infection Control: 100% sterile and single-use, eliminating the risk of patient-to-patient cross-contamination and biofilm buildup.

  • Zero Downtime: Removes the bottleneck of scope reprocessing and repair cycles; a sterile scope is available for every patient, every time.

  • HD Visualization: High-resolution imaging paired with a 120° field of view ensures no pathology is missed during examination.

  • Cost Predictability: Eliminates the hidden costs of sterilization chemicals, specialized labor, and expensive maintenance contracts associated with reusable fiber-optic scopes.


Technical Specifications

Feature Specification
Model Number 603101000
Resolution 800 x 800 pixels (HD)
Field of View 120°
Insertion Outer Diameter 16.2 Fr (5.4 mm)
Working Channel (Min) 6.6 Fr (2.2 mm)
Working Length 388 mm
Bending Angle 210° Up / 120° Down

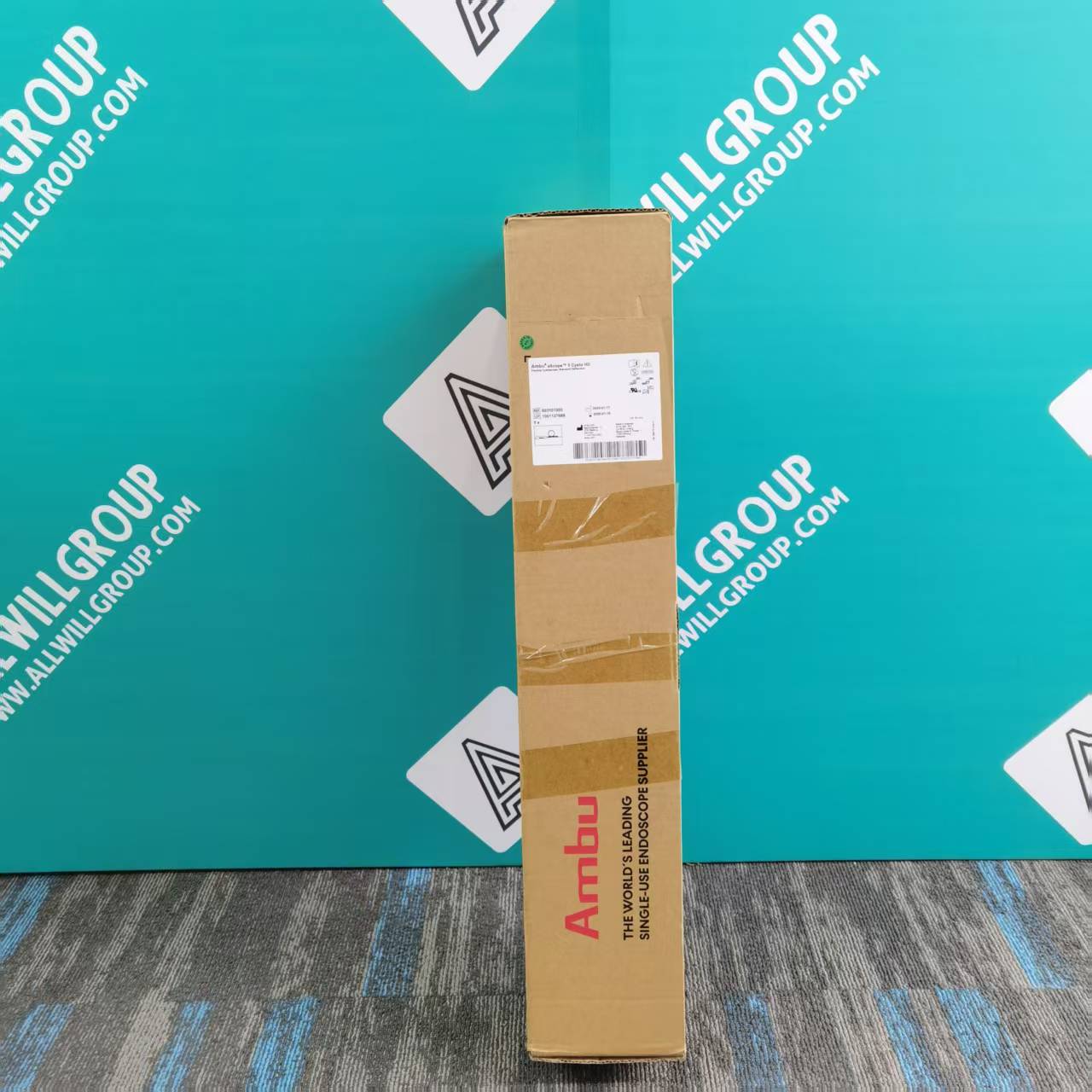

Packaging 5 units per box

Frequently Asked Questions

What are the primary benefits of using a single-use cystoscope like the aScope 5 Cysto HD?

The primary benefits include improved patient safety through the elimination of cross-contamination risks and significantly enhanced workflow efficiency. Because the aScope 5 is single-use, there is no need for reprocessing, specialized cleaning staff, or expensive maintenance. This ensures a sterile, high-definition scope is always available for immediate clinical use.

How does the HD resolution of the T311F15 compare to traditional flexible cystoscopes?

The aScope 5 Cysto HD features an 800×800 px camera, which provides significantly higher resolution than many traditional fiber-optic flexible scopes. This clarity, combined with Advanced Red Contrast (ARC) technology, allows for better identification of small lesions and vascular abnormalities, supporting more accurate diagnoses and surgical outcomes.

Is the aScope 5 Cysto HD compatible with surgical lasers?

Yes, the aScope 5 Cysto HD is fully compatible with standard urological surgical lasers, including Holmium YAG and Thulium fiber lasers. Its 2.2 mm (6.6 Fr) working channel is designed to accommodate laser fibers and other endoscopic accessories while maintaining adequate irrigation flow during therapeutic procedures.

What display systems are required to use this cystoscope?

The aScope 5 Cysto HD is designed to work seamlessly with Ambu’s dedicated high-resolution monitors, specifically the Ambu® aView™ 2 Advance and the aBox™ 2. These systems provide the processing power necessary for the Advanced Red Contrast (ARC) and ensure a high-fidelity digital image output.

What is the significance of the 16.2 Fr outer diameter and 6.6 Fr working channel?

The 16.2 Fr (5.4 mm) outer diameter is designed for patient comfort while providing the structural integrity needed for precise navigation. The large 6.6 Fr (2.2 mm) working channel is a key feature, as it allows for the use of various biopsy forceps, snares, and laser fibers without compromising suction or irrigation.

How does Advanced Red Contrast (ARC) technology assist in urological procedures?

ARC is a specialized imaging technology that selectively enhances red color tones within the video feed. In a urological context, this makes it easier for the clinician to identify hypervascular areas, inflammatory markers, and specific types of lesions that might be less visible under standard white-light illumination.
