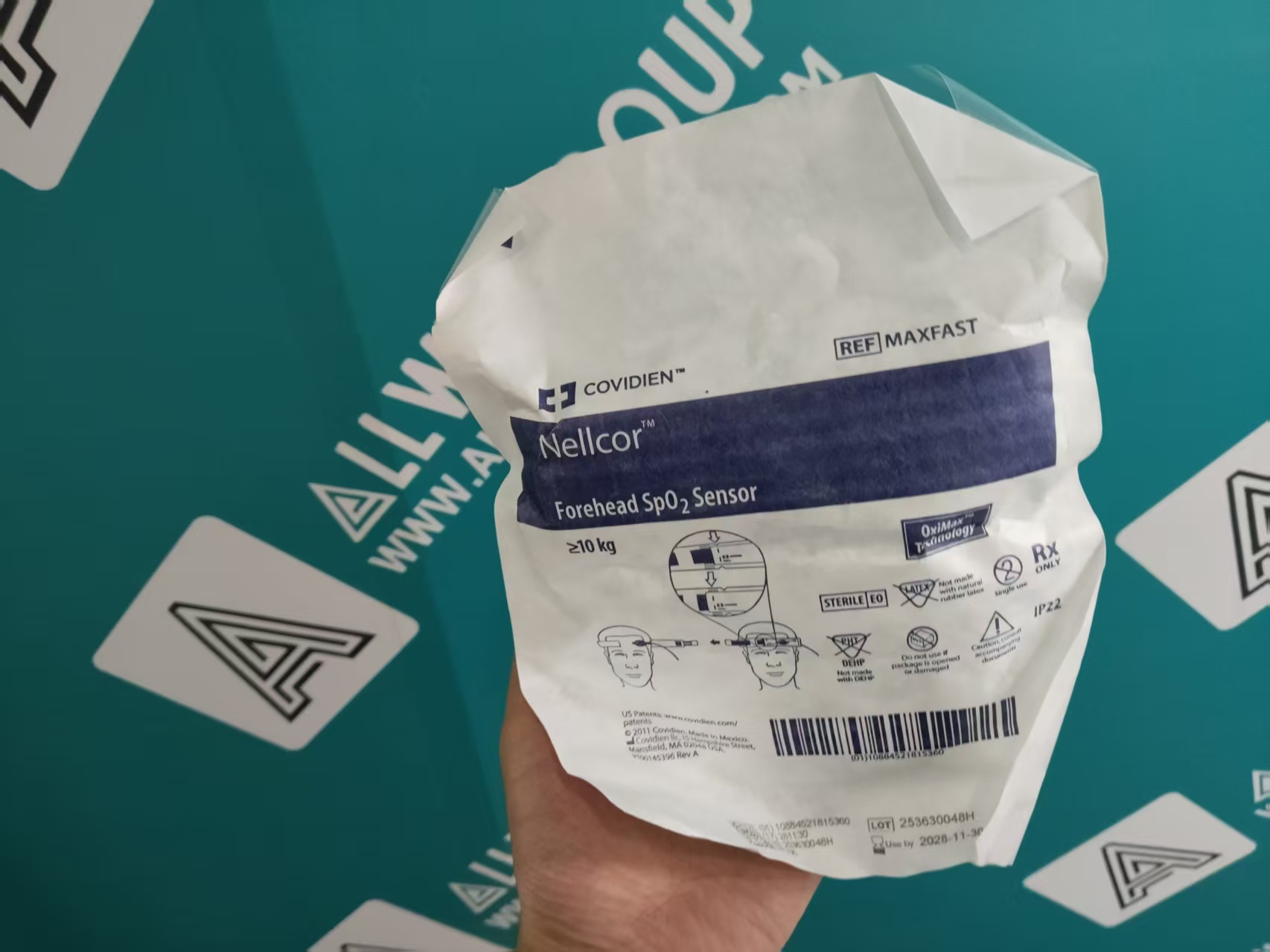

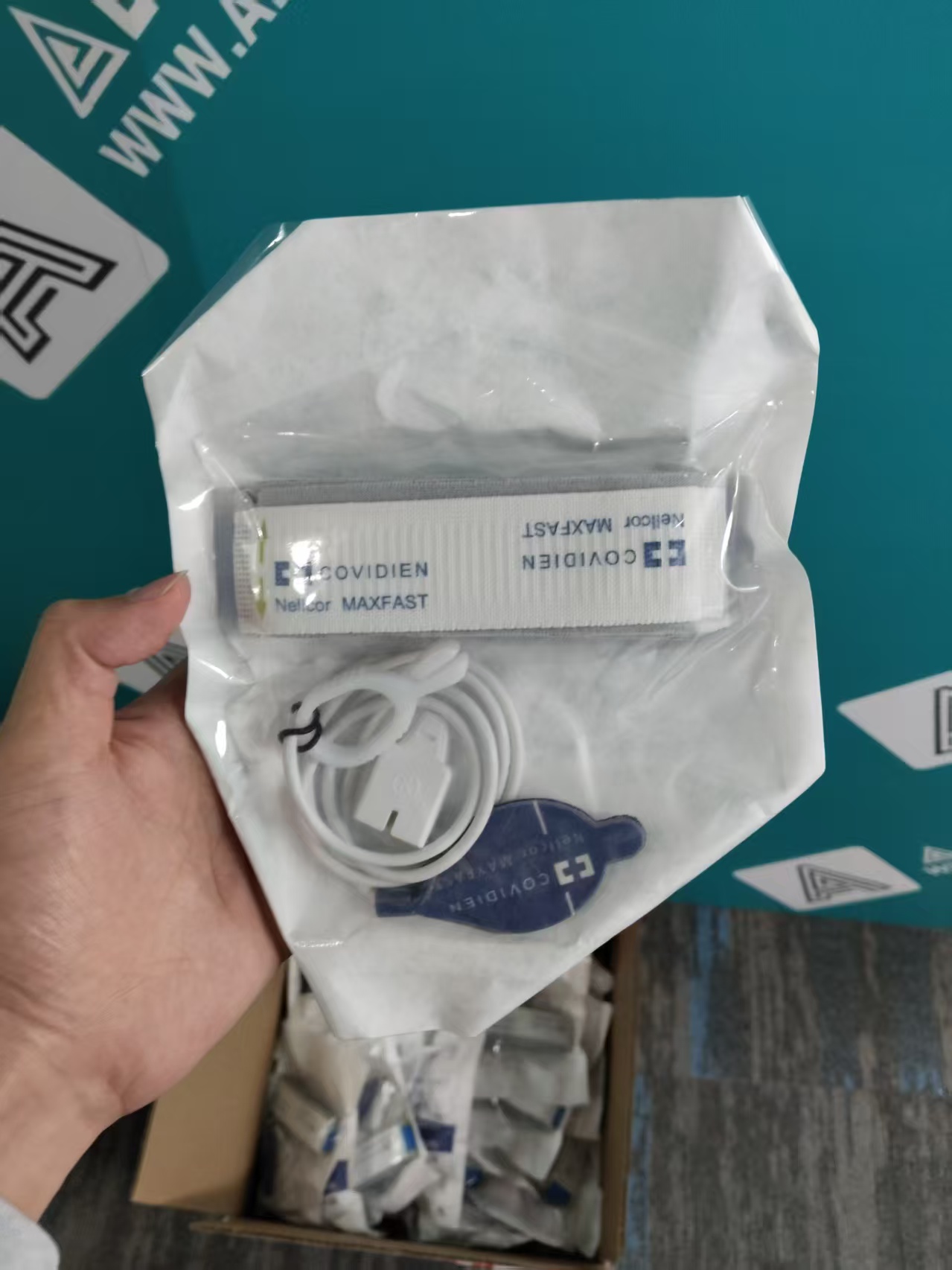

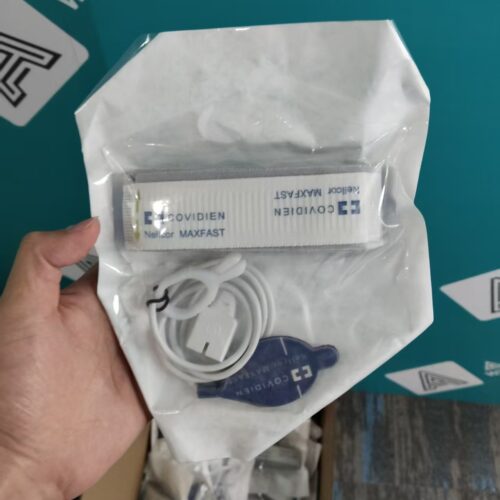

Medtronic COVIDIEN MAXFAST Nellcor™ SpO2 Forehead Sensor

Condition: New
Part #: Nellcor™ SpO2 Forehead Sensor

$56.00

SKU: Nellcor™ SpO2 Forehead Sensor Categories: ,
MAKE AN OFFER
Description

The Medtronic Covidien Nellcor™ Max-Fast™ Forehead SpO₂ Sensor is a premier, non-invasive solution for continuous oxygen saturation and pulse rate monitoring. Unlike traditional digit-based sensors, the Max-Fast™ is specifically engineered for use on the forehead, making it the gold standard for patients with poor peripheral circulation or compromised perfusion.

Designed to meet the rigorous demands of critical care environments, this sensor provides rapid detection of hypoxemic events, ensuring clinicians have the real-time data necessary for immediate intervention. By utilizing the forehead site, the Max-Fast™ avoids the common signal interference found in extremities, providing a stable and reliable monitoring platform for both adult and pediatric patients.


Core Technology: OxiMax™ and LoSat™ Precision

The Max-Fast™ sensor integrates Medtronic’s most advanced digital signal processing technologies to ensure data integrity in the most challenging clinical conditions:

  • OxiMax™ Pulse Oximetry Technology: This digital communication technology allows the sensor to work in tandem with the monitor to filter out “noise” caused by patient movement or low ambient light.

  • LoSat™ Expanded Accuracy: While many sensors lose precision in low-range saturation, the Max-Fast™ maintains a ±3-digit precision even in the 60% to 100% SpO₂ range.

  • Faster Detection Times: Because the forehead is closer to the heart and less affected by peripheral vasoconstriction, this sensor can detect changes in oxygen saturation up to 90 seconds faster than traditional finger-clip sensors.


Mechanism of Action

The Max-Fast™ Forehead Sensor operates on the principles of spectrophotometry and photoplethysmography. It emits specific wavelengths of red and infrared light into the vascular bed of the forehead.

The sensor measures the light absorption of oxygenated versus deoxygenated hemoglobin. Because the forehead is supplied by the internal carotid artery—the same source that supplies the brain—the SpO₂ readings reflect “central” oxygenation. This is critical for patients in shock or under anesthesia, where blood flow to the fingers and toes may be restricted to preserve core organ function.


Clinical Applications and Uses

The versatility of the Max-Fast™ makes it an essential tool across various high-acuity hospital departments:

  • Intensive Care Units (ICU): Ideal for sedated or hemodynamically unstable patients where peripheral monitoring is unreliable.

  • Operating Rooms (OR): Enables anesthesiologists to monitor central oxygenation during surgery without interference from blood pressure cuffs or surgical site restrictions.

  • Emergency Departments (ED): Rapid placement allows for immediate triage and monitoring of trauma or respiratory distress patients.

  • High-Altitude & Transport Medicine: Certified for use up to 4,600 meters, making it suitable for medevac and high-altitude clinical facilities.


Key Advantages

  • Superior Signal Acquisition: Minimizes signal dropouts in patients with low perfusion or cold extremities.

  • Enhanced Patient Comfort: The integrated headband ensures secure placement without the pinching or pressure associated with finger or ear-clip sensors.

  • Skin Safety: Designed to mitigate the risk of pressure necrosis, a common complication when using ear sensors for extended periods.

  • Latex-Free Construction: Eliminates the risk of allergic reactions, ensuring safety for sensitive patients.

  • Improved Clinical Response: The 90-second lead time in detecting hypoxemia can be the difference between a routine adjustment and a critical code event.


Application and Placement Process

To ensure optimal performance and patient safety, clinicians should follow these steps:

  1. Site Selection: Clean the skin on the forehead just above the eyebrow to remove oils and ensure a clear optical path.

  2. Sensor Placement: Center the sensor on the forehead. Ensure the optical components are flush against the skin.

  3. Securing: Use the included integrated headband to keep the sensor stable. Avoid over-tightening to maintain local skin perfusion.

  4. Monitoring: Perform regular site inspections (typically every 2–4 hours) to check for skin integrity and sensor alignment. The sensor is rated for up to two days of single-patient use.


Technical Specifications

Feature Specification
Model MAXFAST
Patient Population Adults and Pediatrics (≥ 10 kg / 22 lbs)
SpO₂ Accuracy 60% – 100% (± 3 digits)
Cable Length 3 ft (approx. 0.9 meters)
Dimensions 99.6 x 36 x 102.5 mm
Weight 210 g (8.2 oz)
Operating Temp 0°C to 45°C (32°F to 113°F)
Altitude Limit Up to 4,600 meters (15,092 ft)
Compatibility Nellcor™ OxiMax™ Systems (N-600, N-560, N-65, etc.)

Frequently Asked Questions

Why is a forehead sensor better than a finger sensor for low perfusion?

In patients with low perfusion or vasoconstriction, blood flow is diverted from the extremities to the core. A finger sensor may fail to find a pulse or provide inaccurate data. The forehead is supplied by the internal carotid artery, ensuring a stable, “central” signal even when peripheral circulation is poor.

How much faster does the Max-Fast™ detect oxygen drops?

Clinical studies show the Nellcor™ Max-Fast™ sensor can detect desaturation events up to 90 seconds faster than sensors placed on the fingers. This rapid detection is vital in the OR and ICU, giving medical staff a significant head start to correct respiratory issues before they become critical.

Is the Max-Fast™ forehead sensor reusable?

No, the Max-Fast™ is designed for single-patient use to maintain hygiene and prevent cross-contamination in clinical settings. However, it is durable enough to stay on a single patient for up to two days, provided the clinician performs regular skin checks and site rotations.

What monitors are compatible with the MAXFAST sensor?

The Max-Fast™ is fully compatible with all Nellcor™ pulse oximetry systems featuring OxiMax™ technology. This includes widely used hospital monitors such as the Nellcor™ N-600, N-560, and the N-65 handheld monitors, as well as many integrated third-party multi-parameter bedside monitors.

Does the sensor cause skin irritation?

The Max-Fast™ is latex-free and designed with an integrated headband to distribute pressure evenly. Unlike ear sensors, which can cause pressure necrosis, the forehead placement is generally safer for long-term monitoring. Regular skin inspections every few hours are recommended to ensure the patient’s skin remains healthy.

Can this sensor be used on children?

Yes, the Max-Fast™ forehead sensor is validated for use on pediatric patients, provided they weigh at least 10 kg (approximately 22 lbs). For patients under this weight limit, clinicians should consult the Medtronic catalog for specialized neonatal or infant-specific Nellcor™ sensors.
