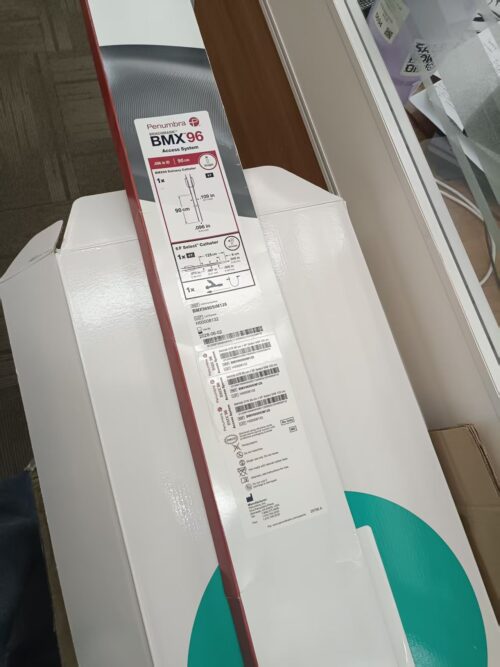

Penumbra-BMX9690SIM125 – BMX 96,90cm 6F,STR SIM125cm,RA

Condition: New
Part #: BMX9690SIM125

$1,590.50

SKU: BMX9690SIM125 Categories: ,
MAKE AN OFFER
Description

The Penumbra Benchmark BMX96 Access System (Model: BMX9690SIM125) is a premier neurovascular catheter platform designed for high-stakes interventional procedures. By integrating an expansive .096″ inner lumen with a specialized 6F SIM select catheter, this system provides clinicians with the stability and torque required to navigate tortuous anatomy in neurovascular, coronary, and peripheral environments.

This integrated kit is engineered to streamline clinical workflows by eliminating the need for complex wire exchanges, allowing for rapid, atraumatic transition from diagnostic angiography to therapeutic intervention.


Core Technology: The Laser-Cut Advantage

The BMX9690SIM125 is constructed using advanced material science to balance two traditionally opposing forces in catheter design: flexibility and pushability.

  • Stainless Steel Hypotube: The foundation of the system provides the structural integrity needed for superior torque transmission.

  • Precision Laser-Cut Zones: The distal portion features specific laser-cut patterns that allow the catheter to track through acute angles and vessel loops without kinking.

  • Low-Profile 6F SIM Curve: The select catheter (125 cm) features a Simmons (SIM) curve, specifically optimized for difficult arch vessel selection.


Mechanism of Action

The system operates on a coaxial advancement principle. The 6F SIM select catheter acts as the leading edge, utilizing its pre-shaped curve to “hook” or select target vessels within the aortic arch or peripheral junctions. Once the path is secured, the larger 8F x 90 cm delivery catheter tracks over the select catheter.

The soft, atraumatic distal tip and radiopaque markers provide the operator with real-time feedback and visibility under fluoroscopy, ensuring the device is positioned safely at the treatment site without damaging the delicate vessel intima.


Clinical Applications and Uses

The BMX9690SIM125 is versatile, serving as the primary access foundation for several critical interventions:

  • Acute Ischemic Stroke (AIS): Rapid delivery of aspiration catheters or stent retrievers for mechanical thrombectomy.

  • Aneurysm Coiling: Providing a stable platform for the delivery of microcatheters and embolic coils.

  • Neurovascular Embolization: Treatment of Arteriovenous Malformations (AVMs) and fistulas.

  • Peripheral and Coronary Interventions: Accessing complex lesions where standard guide catheters lack sufficient support.


Key Advantages

  • Large Bore Access: The .096″ lumen is one of the largest in its class, facilitating the easy passage of high-flow devices and therapeutic agents.

  • Minimal Ledge Effect: The seamless transition between the select catheter and the delivery sheath reduces resistance during advancement through the anatomy.

  • Procedural Efficiency: The “all-in-one” kit design reduces the need for multiple device swaps, potentially lowering procedure time—a critical factor in “time-is-brain” scenarios like stroke.

  • Enhanced Stability: Once positioned, the system provides a robust anchor for distal navigation.


Technical Specifications

Feature Specification
Model Number BMX9690SIM125
Delivery Catheter Size 8F Outer Diameter
Inner Lumen Diameter .096″ (2.44 mm)
Effective Length 90 cm (Delivery) / 125 cm (Select)
Select Catheter Profile 6F
Select Catheter Curve SIM (Simmons)
Max Guidewire Compatibility .038″ (0.97 mm)
Construction Laser-cut Stainless Steel Hypotube

Frequently Asked Questions

What is the primary benefit of the .096″ lumen in the BMX96 system?

The .096″ inner lumen provides a significantly larger workspace compared to standard .070″ or .088″ guide sheaths. This allows clinicians to deliver larger therapeutic devices, maintain higher flow rates during angiography, and reduce the friction encountered when navigating multiple microcatheters or bulky thrombectomy tools through the system.

How does the SIM curve select catheter improve procedural outcomes?

The Simmons (SIM) curve is specifically designed for complex vascular anatomy, such as Type II or Type III aortic arches. It facilitates easier selection of the common carotid or subclavian arteries. By providing a stable, coaxial lead, it allows the larger BMX96 delivery catheter to follow safely into the distal vasculature.

Is the Penumbra BMX9690SIM125 compatible with standard guidewires?

Yes, the system is designed to support guidewires up to .038″ in diameter. This compatibility ensures that clinicians can use their preferred diagnostic or heavy-duty support wires to navigate to the target site before advancing the BMX96 access system, providing flexibility across various interventional techniques.

What makes the tip design of the BMX96 “atraumatic”?

The distal tip of the BMX96 is engineered with laser-cut flexibility and a soft-material finish. Unlike stiffer, basic guide sheaths, this design allows the catheter to deflect off vessel walls rather than digging into them. Coupled with radiopaque markers for visibility, it ensures precise, safe navigation in delicate neurovascular environments.

Can this system be used for procedures other than stroke treatment?

While highly effective for mechanical thrombectomy in stroke cases, the BMX9690SIM125 is a versatile access platform. It is frequently used for aneurysm coiling, tumor embolization, and peripheral vascular procedures. Its combination of torque, stability, and large internal diameter makes it suitable for any intervention requiring distal therapeutic delivery.

Does the BMX96 system require wire exchanges to transition to therapy?

One of the core advantages of this integrated kit is the reduction of wire exchanges. The 6F select catheter and 8F delivery catheter work coaxially. Once the target vessel is accessed and the delivery catheter is in place, the select catheter is removed, leaving a large-bore channel ready for immediate therapy delivery.
