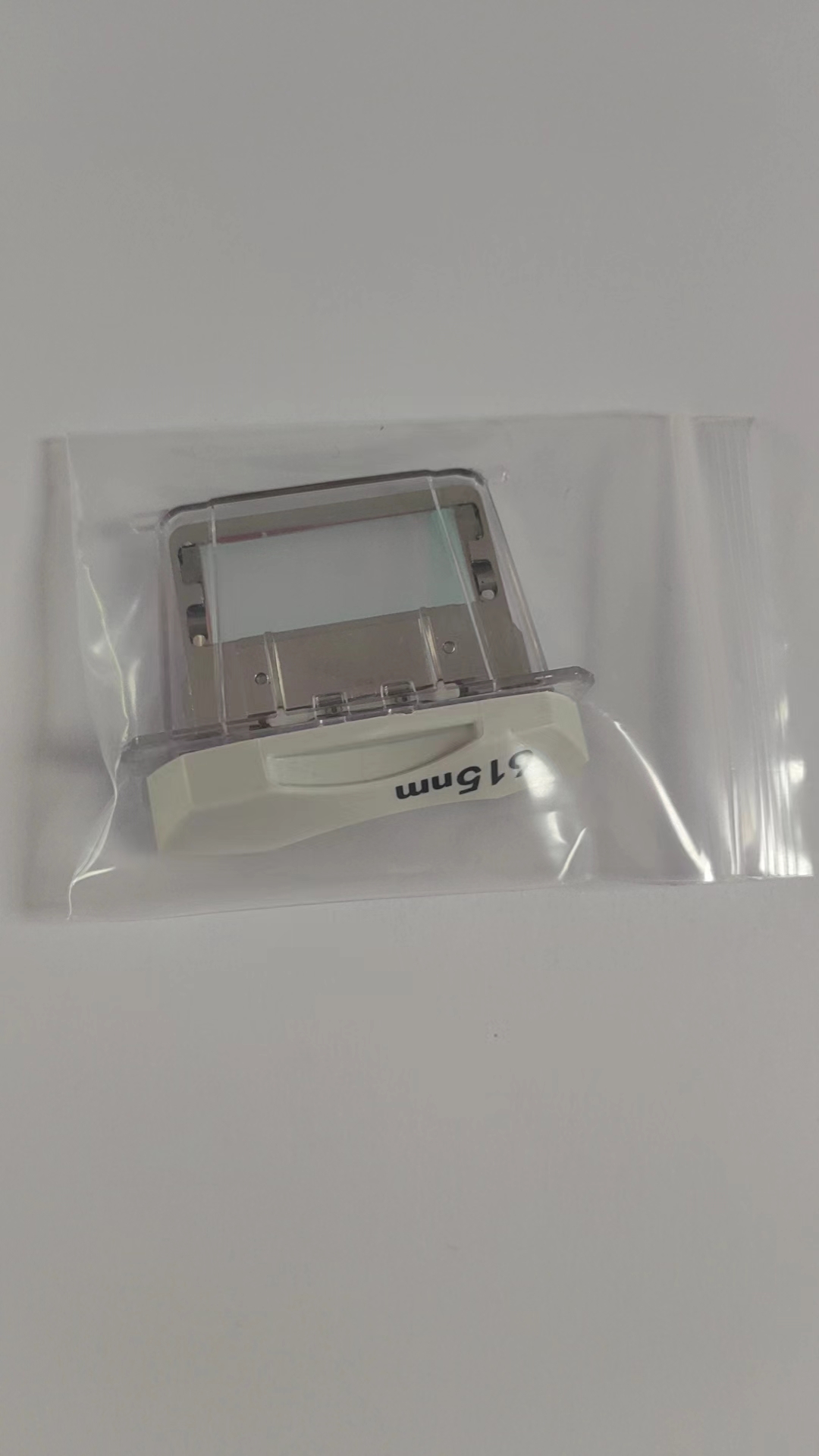

LUMENIS 615nm IPL Filter

Condition: New
Part #: 615nm IPL Filter

$350.00

SKU: 615nm IPL Filter Categories: , ,
MAKE AN OFFER
Description

The Lumenis 615nm IPL Filter is a high-performance, interchangeable optical component designed specifically for the Lumenis M22™ and Lumenis One™ (Lume One) platforms. Operating at a 615nm wavelength, this filter acts as a bridge between superficial pigment treatments and deeper vascular therapy.

By narrowing the spectrum of the Intense Pulsed Light (IPL), the 615nm ExpertFilter allows aesthetic professionals to target specific chromophores with surgical precision. It is an essential tool for clinics looking to expand their clinical versatility, offering a highly effective solution for challenging vascular conditions and photoaging on light to medium skin types.


Core Technology: Optimal Pulse Technology (OPT™)

The 615nm filter utilizes Lumenis’ proprietary Optimal Pulse Technology (OPT™). Unlike standard IPL systems that deliver “front-loaded” energy (a sharp spike followed by a rapid drop), OPT™ provides a “flat-top” pulse.

  • Uniform Energy: Delivers consistent power throughout the entire pulse duration.

  • Automatic Recognition: Integrated with computer-aided filter recognition, the system instantly identifies the 615nm filter (P/N LB-003810) when inserted, ensuring safety and reducing setup time.

  • Precision Filtering: High-quality coatings ensure a strict 615nm cutoff, minimizing “spectral leak” that could lead to unnecessary epidermal heating.

Mechanism of Action

The 615nm wavelength is specifically tuned to the absorption peaks of hemoglobin and melanin. At this frequency, the light energy penetrates deeply into the dermal vascular structures.

  1. Selective Photothermolysis: The light is absorbed by the target (the vessel or pigment) without damaging the surrounding tissue.

  2. Vascular Coagulation: In vascular treatments, the heat causes the vessel walls to collapse and coagulate.

  3. Pigment Fragmentation: For pigmented lesions, the energy breaks down melanin clusters, which are then naturally processed and eliminated by the body’s lymphatic system.


Clinical Applications

The 615nm filter is a versatile “workhorse” for medical spas and dermatology practices, specializing in:

  • Vascular Lesions: Effective for telangiectasia (spider veins), hemangiomas, and leg veins.

  • Rosacea Management: Targeting the diffused redness and visible vessels associated with erythematotelangiectatic rosacea.

  • Advanced Pigmentation: Treating sunspots, freckles, and age spots that require deeper penetration than standard rejuvenation filters.

  • Skin Rejuvenation: Improving overall skin tone and texture through mild dermal heating.


Key Advantages

  • Deep Penetration: While shorter wavelengths (like 515nm or 560nm) target superficial spots, the 615nm reaches deeper into the vascular bed.

  • Epidermal Protection: Fully compatible with Lumenis SapphireCool™ contact cooling, which chills the skin before, during, and after the pulse to prevent thermal injury and enhance patient comfort.

  • Seamless Integration: Designed for the Universal IPL handpiece, allowing for rapid swaps between filters (e.g., moving from a 590nm pigment pass to a 615nm vascular pass) in seconds.

  • Durability: Engineered as a robust replacement part (P/N LB-003810) for high-volume clinical use.


The Treatment Process

  1. Filter Selection: The practitioner inserts the 615nm filter into the handpiece; the M22/Lume One system automatically updates the interface.

  2. Parameter Settings: Based on the patient’s Fitzpatrick skin type (I-III) and the target lesion, the fluence and pulse duration are calibrated.

  3. Cooling: The contact cooling tip is applied to the treatment area.

  4. Pulse Delivery: Controlled IPL pulses are delivered. Patients typically feel a mild “snapping” sensation.

  5. Post-Care: Because the 615nm filter is non-ablative, there is minimal downtime. Patients may experience slight redness which typically subsides within hours.


Technical Specifications

Feature Specification
Wavelength 615 nm – 1200 nm
Part Number LB-003810 (Lumenis Replacement Part)
Platform Compatibility Lumenis M22™, Lumenis One™
Primary Targets Vascular Lesions, Telangiectasia, Rosacea, Pigmentation
Skin Type Suitability Fitzpatrick Types I – III (Light to Medium)
Cooling Integrated Sapphire Contact Cooling
Technology Type Optimal Pulse Technology (OPT™)

Frequently Asked Questions

What is the main difference between the 590nm and 615nm filters?

The 590nm filter is a “generalist” filter used for broad skin rejuvenation and superficial pigmentation. The 615nm filter penetrates deeper into the dermis, making it significantly more effective for targeting larger vascular structures, such as telangiectasia and deeper-seated redness that the 590nm cannot reach effectively.

Can the 615nm filter be used on dark skin types?

The 615nm filter is best suited for Fitzpatrick Skin Types I through III. Because 615nm light is still highly absorbed by melanin, using it on darker skin types (Type IV and above) increases the risk of epidermal burns. For darker tones, filters like the 640nm or 755nm are generally safer.

How does the computer-aided filter recognition work?

Lumenis ExpertFilters contain specialized coding that the universal handpiece reads upon insertion. This safety feature prevents the system from firing if a filter is improperly seated and automatically populates the software with the correct energy parameters for that specific wavelength, reducing the chance of user error.

Is there any downtime after a treatment with the 615nm filter?

Treatments with the 615nm filter are non-ablative, meaning they do not break the skin surface. Most patients experience mild “vasodilation” (redness) or slight swelling for 24–48 hours. Patients can usually return to work and apply makeup immediately following the procedure, provided they use sun protection.

Why is contact cooling important for the 615nm wavelength?

Because the 615nm wavelength targets deeper vascular structures, higher energy fluences are often required. Integrated cooling (SapphireCool) protects the top layer of skin (epidermis) from heat buildup, allowing the energy to pass through safely to the deeper target vessels while significantly improving patient comfort during the pulse.

How many sessions are typically required for vascular lesions?

While some small spider veins may disappear after a single treatment, most patients require 3 to 5 sessions spaced 4 weeks apart to achieve optimal results. The number of sessions depends on the depth, size, and chronicity of the vascular lesions being treated.
