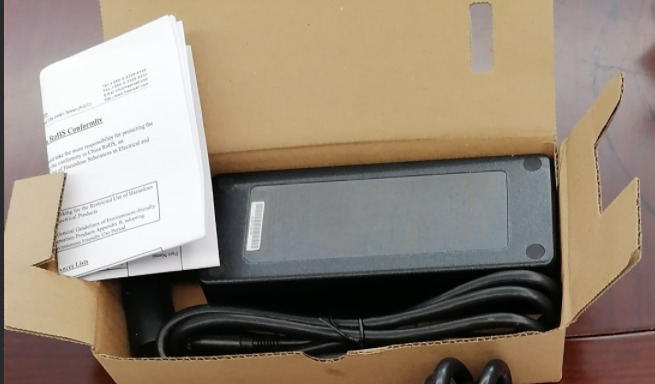

MeanWell GST120A24-R7B Desktop SPS

Condition: New
Part #: MeanWell GST120A24-R7B Desktop SPS

$112.50

SKU: MeanWell GST120A24-R7B Desktop SPS Categories: , ,
MAKE AN OFFER
Description

The MeanWell GST120A24-R7B is a high-performance, industrial-grade desktop switched-mode power supply (SPS) engineered for reliability in demanding professional environments. As part of MeanWell’s energy-efficient green adapter series, it provides a stable 24V DC output at 5A, delivering a total of 120W of continuous power.

This unit is specifically optimized for seamless integration with high-precision systems such as the VECTOR VH1150 and VH1160, making it a preferred choice for automotive testing, industrial automation, and professional telecommunications. Its universal input range ensures global compatibility, while its rugged design guarantees a long service life under rigorous duty cycles.


Core Technology

The GST120A24-R7B utilizes advanced Pulse Width Modulation (PWM) and high-frequency switching technology to achieve a compact footprint without sacrificing power density.

  • Universal Power Input: Operates reliably on 85-264VAC (standard mains) or 120-370VDC (industrial DC grids).

  • Green Power Logic: Features a specialized control circuit that keeps no-load power consumption below 0.15W, exceeding current global energy efficiency regulations (Level VI).

  • Thermal Management: The circuitry is housed in a 94V-0 flame-retardant plastic case, designed for passive cooling and efficient heat dissipation even in enclosed spaces.


Mechanism of Action

The power supply functions by converting unstable AC or DC input voltages into a tightly regulated 24V DC output.

  1. Rectification and Filtering: The input voltage is rectified and smoothed to create a high-voltage DC bus.

  2. High-Frequency Switching: A MOSFET-driven power stage switches the DC at high frequencies, allowing for the use of a significantly smaller transformer than traditional linear power supplies.

  3. Regulation: A feedback loop constantly monitors the output voltage, adjusting the duty cycle in real-time to maintain a steady 5A flow, regardless of input fluctuations or load changes.

  4. Protection Interlocks: In the event of a fault (such as a short circuit or thermal spike), the integrated protection IC shuts down the output to prevent damage to the connected equipment.


Applications and Industry Use

Thanks to its robust build and clean power output, the MeanWell GST120A24-R7B is utilized across several critical sectors:

  • Industrial Automation: Powers PLCs, sensors, and motor controllers.

  • Automotive Testing: Specifically compatible with VECTOR VH1150/VH1160 interfaces for vehicle network analysis.

  • Medical Equipment: Suitable for non-patient-contact medical devices requiring high safety standards.

  • Point of Sale (POS): Ensures 24/7 uptime for retail terminals and commercial printing systems.

  • Telecommunications: Provides stable DC rails for network hubs and signal boosters.


Key Advantages

  • Extreme Temperature Resilience: Unlike standard adapters that fail in heat or cold, this unit operates across a wide -30°C to +70°C range.

  • Global Compliance: Fully certified to UL62368-1 and EN55032, ensuring it meets the strictest safety and electromagnetic compatibility (EMC) requirements worldwide.

  • High Efficiency: With an efficiency rating exceeding 90%, it produces less waste heat, reducing operational costs and improving the lifespan of internal components.

  • Comprehensive Protection: Includes built-in safeguards against overvoltage, overload, short-circuits, and over-temperature conditions.


Technical Specifications

Feature Specification
Output Voltage 24V DC
Output Current 5A
Rated Power 120W
Input Voltage Range 85 ~ 264VAC / 120 ~ 370VDC
Connector Type 4-Pin DIN (R7B configuration)
Inlet Type IEC320-C14 (3-Pole)
Dimensions 167 x 67 x 35 mm (L x W x H)
Operating Temp. -30°C to +70°C
Efficiency > 90%

Frequently Asked Questions

Is the GST120A24-R7B compatible with international power grids?

Yes, this power supply features a universal input range of 85-264VAC. This allows it to operate seamlessly in North America, Europe, and Asia without the need for a voltage converter. You only need to provide the appropriate IEC320-C14 power cord for your specific regional wall outlet.

What makes the R7B version different from standard 24V adapters?

The R7B designation refers specifically to the 4-pin power DIN connector. This locking connector is designed for professional and industrial equipment, such as VECTOR VH1150 systems, providing a more secure and vibration-resistant connection than standard barrel jacks, which is critical for maintaining uninterrupted power in industrial environments.

Can this power supply be used in unheated outdoor enclosures?

The GST120A24-R7B is rated for operation down to -30°C, making it exceptionally well-suited for cold-weather environments or unheated industrial enclosures. Most competitors only support temperatures down to 0°C. However, ensure the unit remains dry, as it is designed for indoor or protected use.

How does the “Level VI” efficiency rating benefit my business?

Level VI compliance ensures that the unit wastes very little energy as heat. This reduces your electricity overhead and prevents the unit from overheating in confined spaces. Additionally, the low no-load consumption (under 0.15W) means you save energy even when the connected device is in standby mode.

What happens if there is a short circuit in my connected device?

The unit features an intelligent short-circuit protection mode. If a fault is detected, the power supply will shut down the output to prevent fire or hardware damage. Once the short circuit is removed, the unit typically recovers automatically or after a quick power cycle, protecting your investment.

Does this power supply require a specific type of input cable?

It utilizes a standard IEC320-C14 inlet, which is the common “kettle lead” or desktop computer style 3-prong connector. This makes it easy to source replacement cables locally or use cables of different lengths to suit your specific workstation or industrial rack setup.
