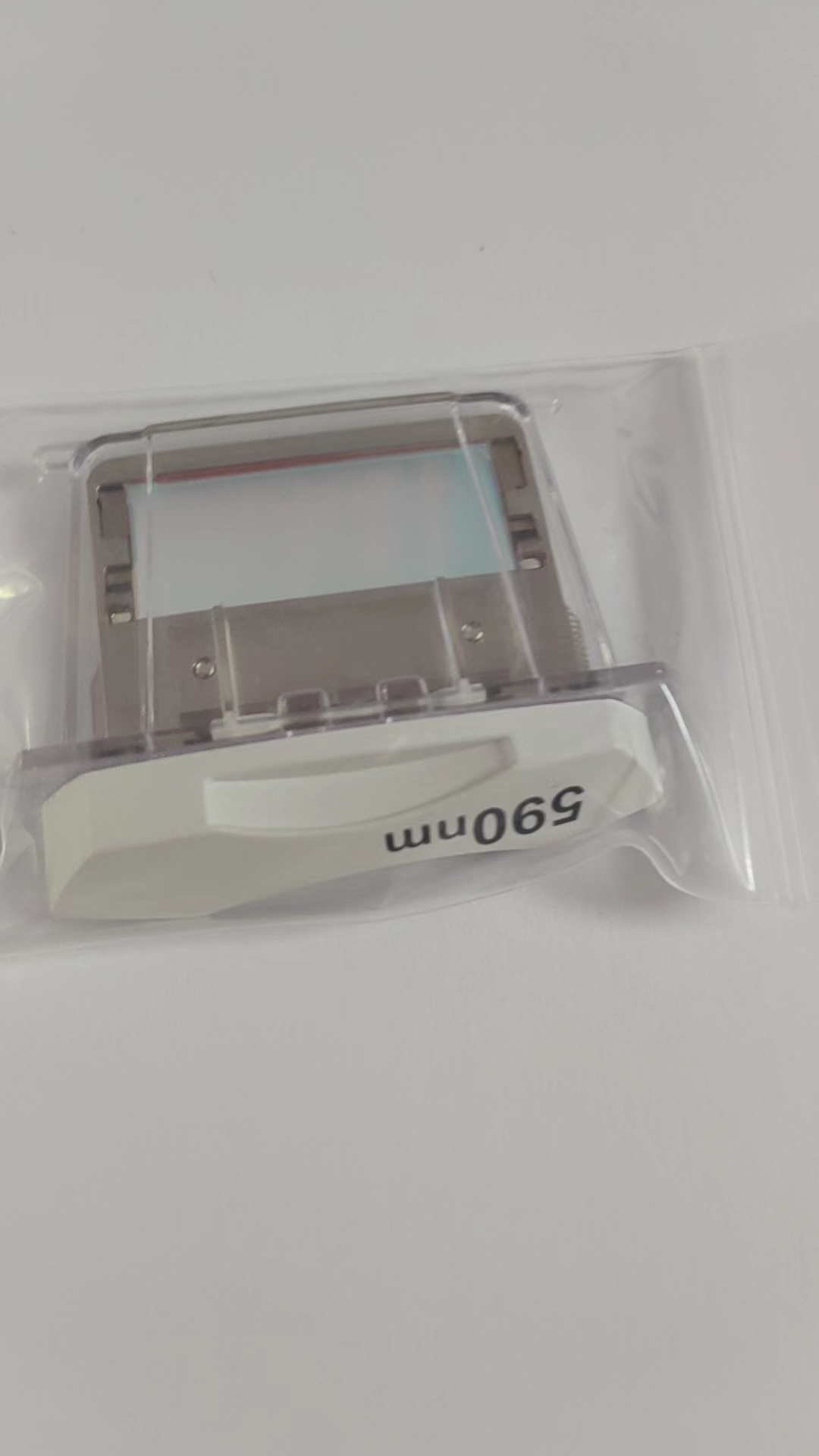

LUMENIS 590nm IPL Filter

Condition: New
Part #: 590nm IPL Filter

$350.00

SKU: 590nm IPL Filter Categories: , ,
MAKE AN OFFER
Description

The LUMENIS 590nm IPL Filter is a premium optical component engineered for high-performance Intense Pulsed Light (IPL) systems, including the Lumenis One™ and Quantum SR™ platforms. Designed specifically for advanced vascular treatments, this filter narrows the light spectrum to the 590nm–1200nm range.

By isolating these specific wavelengths, the 590nm filter maximizes energy absorption by hemoglobin, making it an essential tool for clinicians treating deep-seated vascular lesions, moderate rosacea, and telangiectasia. It bridges the gap between superficial pigmentation filters and deeper hair removal filters, offering a versatile solution for comprehensive photorejuvenation.


Core Technology: OPT™ and Precision Optics

The efficacy of the 590nm filter is powered by Lumenis’ proprietary Optimal Pulse Technology (OPT™). Unlike standard IPL systems that produce a “spike” of energy followed by a rapid drop-off, OPT™ delivers a “square wave” pulse.

  • Consistent Peak Power: Maintains uniform energy delivery (20-45 J/cm²) throughout the entire pulse duration.

  • Pulse Versatility: Supports pulse durations from 6 to 26 ms with adjustable delays up to 60 ms, allowing clinicians to customize the thermal relaxation time based on the vessel size.

  • Selective Filtration: The precision coating ensures a sharp cut-off at 590nm, protecting the epidermis from unnecessary shorter-wavelength exposure.


Mechanism of Action

The 590nm filter operates via selective photothermolysis, specifically targeting the chromophore hemoglobin.

  1. Light Absorption: The 590nm wavelength is highly absorbed by the oxygenated hemoglobin within the blood vessels.

  2. Thermal Conversion: The absorbed light energy is converted into heat, raising the temperature of the vessel wall.

  3. Vascular Coagulation: The heat causes the vessel to coagulate and collapse. Over the following weeks, the body’s lymphatic system naturally resorbs the treated tissue, leading to a significant reduction in visible redness.


Clinical Applications

This filter is a “specialist” for vascular-dominant skin concerns, primarily used on Fitzpatrick Skin Types II–IV:

  • Vascular Lesions: Effective treatment for spider veins, telangiectasia, and broken capillaries.

  • Rosacea Management: Reduces the persistent facial flushing and visible blood vessels associated with erythrotelangiectatic rosacea.

  • Advanced Photorejuvenation: Addresses sun damage where both redness and deeper pigmentation are present.

  • Leg Veins: Can be utilized for small, superficial leg veins that require deeper penetration than a 560nm filter provides.


Key Advantages

  • Redness Reduction with Zero Downtime: Patients can typically return to daily activities immediately following treatment.

  • Enhanced Patient Comfort: Integrated contact cooling protects the skin surface, making the procedure tolerable even at higher fluences.

  • Superior Safety: The 590nm cut-off reduces the risk of side effects on Type III and IV skin compared to shorter-wavelength filters.

  • Proven Results: Visible improvement in skin tone and texture is usually achieved within 4–6 sessions.


Technical Specifications

Feature Specification
Spectral Range 590 nm – 1200 nm
Energy Fluence 20 – 45 J/cm²
Spot Size 8 x 34 mm
Pulse Duration 6 – 26 ms
Pulse Delay Up to 60 ms
Cooling System Integrated Contact Cooling
Compatibility Lumenis One, Quantum SR, M22 (with adapter)

Frequently Asked Questions

What makes the 590nm filter better for vascular issues than the 515nm filter?

The 515nm filter targets very superficial pigment and light flushing in fair skin. The 590nm filter penetrates deeper into the dermis, reaching the larger blood vessels responsible for rosacea and telangiectasia. This deeper reach ensures that the energy is delivered directly to the hemoglobin within the vessel wall for effective coagulation.

Is there any downtime associated with a 590nm IPL treatment?

One of the primary benefits of the 590nm IPL filter is that there is virtually no downtime. Most patients experience mild redness or a “sunburned” sensation for a few hours post-treatment. Because it does not break the skin surface, patients can apply makeup and return to work immediately.

How many sessions are required to see results for rosacea?

While a single session can provide noticeable improvement, most clinical protocols recommend a series of 4 to 6 sessions spaced approximately 3 to 4 weeks apart. This gradual approach allows for the safe clearing of vascular networks while stimulating collagen production for overall smoother skin texture.

Which skin types can safely be treated with the 590nm filter?

The 590nm filter is generally safe for Fitzpatrick Skin Types II through IV. Because the 590nm wavelength has a lower affinity for epidermal melanin than the 515nm or 560nm filters, it offers a wider safety margin for patients with slightly darker or tanned skin.

Does the filter require special maintenance?

To ensure consistent energy delivery and patient safety, the filter should be cleaned with reagent-grade alcohol after every use. Clinicians should inspect the optical coating for “pitting” or discoloration. Using a damaged filter can compromise the OPT™ pulse delivery and lead to uneven clinical results or potential skin burns.

What does the patient feel during the 590nm IPL procedure?

Thanks to the integrated contact cooling, most patients describe the sensation as a light “rubber band snap” against the skin. The cooling tip prepares the skin before the pulse and soothes it immediately after, significantly reducing the heat sensation and protecting the epidermis from thermal damage.
