MICROLINE 132-136D TSL3 35C 5mm Curved Jaw-35cm

Condition: New
Part #: 132-136D

$5,000.00

MICROLINE 132-136D TSL3 35C 5mm Curved Jaw-35cm

For other MICROLINE inquiry, please let us know, we carry all products
309-004R,MICROLINE Dual Control Footswitch
200-006R,MICROLINE MiSeal UPS, Universal Power Unit
132-134D,MICROLINE TSL3 14C 5mm Curved Jaw-14cm
132-136D,MICROLINE TSL3 35C 5mm Curved Jaw-35cm

SKU: 132-136D Categories: , ,
MAKE AN OFFER
Description

The Microline 132-136D TSL3 35C is a high-performance, disposable electrosurgical instrument designed for advanced laparoscopic procedures. Featuring a 5mm curved jaw and a 35cm shaft, this instrument is engineered to provide surgeons with the reach and precision necessary for complex minimally invasive surgeries.

As part of Microline Surgical’s specialized Thermal Fusion lineup, the TSL3 35C is a versatile tool that integrates tissue sealing, dissection, and division into a single device. By utilizing localized thermal energy rather than traditional high-voltage bipolars, it minimizes lateral thermal spread, protecting delicate surrounding structures while ensuring superior hemostasis.


Core Technology: Patented Thermal Fusion

The foundation of the TSL3 35C is Microline’s proprietary Thermal Fusion technology. Unlike standard ultrasonic or traditional bipolar devices that rely on friction or high-voltage currents, Thermal Fusion uses controlled, direct heat to denature collagen and elastin within the vessel walls.

  • Vessel Sealing: Capable of creating permanent, reliable seals on vessels up to 7mm in diameter.

  • Thermal Management: The technology is designed to limit heat to the active jaw area, reducing the risk of accidental thermal injury to adjacent tissues.

  • Material Science: The tapered jaws are constructed from high-grade surgical alloys to ensure consistent pressure distribution during the sealing cycle.


Mechanism of Action

The Microline TSL3 operates through a two-speed control system, allowing the surgeon to toggle between different energy delivery modes based on the clinical requirement:

  1. Sealing Mode: High-pressure application of thermal energy creates a fusion of the vessel walls, resulting in a secure, translucent seal.

  2. Cutting/Dissection Mode: Once the seal is established, the instrument can transition to mechanical or thermal division of the tissue, enabling the surgeon to progress through the procedure without switching instruments.

The 35cm shaft provides the necessary length to reach the operative field through standard laparoscopic ports, while the ergonomic handle allows for 360-degree rotation of the jaw tip for optimal positioning.


Clinical Applications

The TSL3 35C is a “workhorse” instrument for various surgical disciplines where hemostasis and precision are paramount:

  • General Surgery: Laparoscopic cholecystectomy, appendectomy, and bowel resections.

  • Gynecology: Hysterectomies, salpingo-oophorectomies, and cystectomies.

  • Urology: Nephrectomies and prostatectomies.

  • Bariatric Surgery: Gastric bypass and sleeve gastrectomy, where reaching deep anatomical structures is required.


Key Advantages

  • Superior Access: The tapered, curved jaw allows for fine dissection in tight “V-shaped” anatomical spaces where bulky, straight shears cannot reach.

  • Increased Sealing Capacity: While standard shears often struggle with larger vessels, the TSL3 35C reliably seals vessels up to 7mm, providing confidence in high-vascularity areas.

  • Improved Efficiency: By combining sealing and cutting, the device reduces the need for instrument exchanges, effectively lowering total operative time.

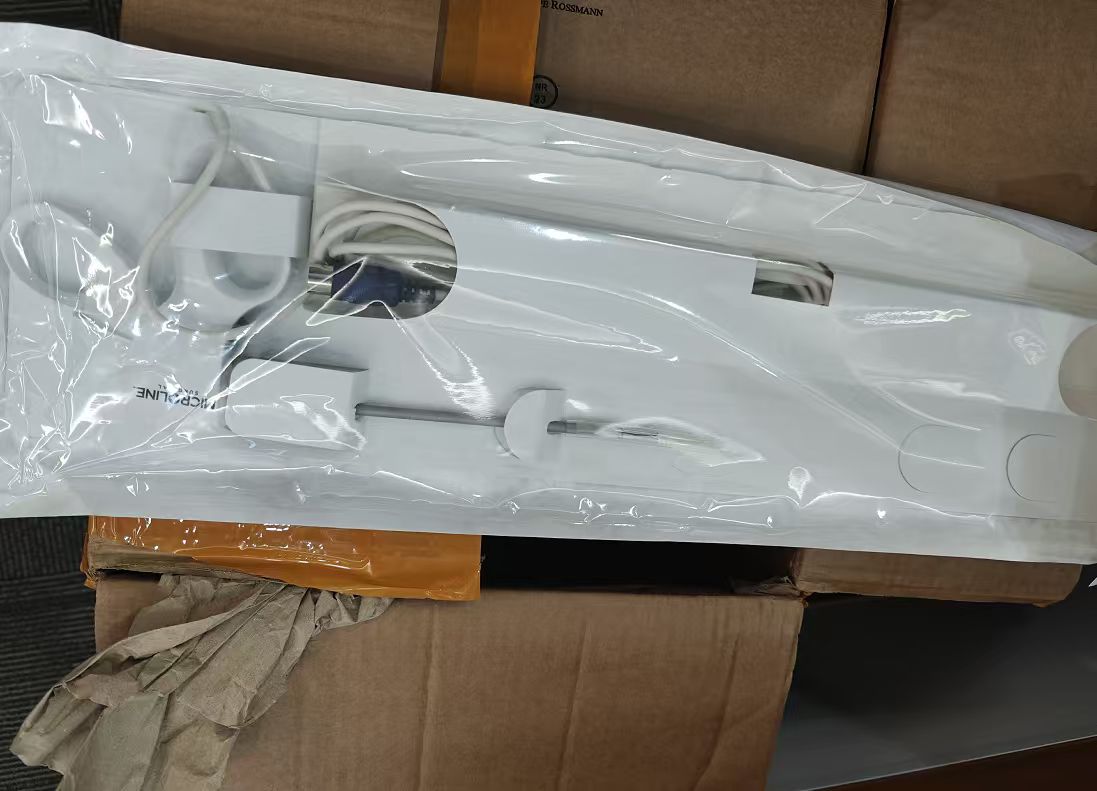

  • Sterile & Ready: Sold in boxes of 5 units, each device is individually packaged and sterile, ensuring immediate availability for emergency or scheduled cases.


Technical Specifications

Feature Specification
Model Number 132-136D TSL3 35C
Shaft Length 35 cm
Shaft Diameter 5 mm
Jaw Profile Curved, Tapered Tip
Sealing Limit Vessels up to 7 mm
Technology Patented Thermal Fusion
Packaging 5 Units per Box
Classification Sterile, Disposable, Single-Use

Frequently Asked Questions

What are the primary benefits of the Thermal Fusion technology in the TSL3 35C?

Microline’s Thermal Fusion technology provides high-integrity vessel seals with minimal lateral thermal spread. Unlike traditional electrosurgical tools, it uses localized heat to fuse tissue, which reduces the risk of damaging surrounding nerves or vital structures. This results in safer dissection and more predictable outcomes in delicate laparoscopic procedures.

Can the Microline 132-136D TSL3 seal large vessels?

Yes, the TSL3 35C is specifically engineered to seal and divide vessels up to 7mm in diameter. This exceeds the 5mm limit typical of many standard laparoscopic shears, making it a preferred choice for surgeries involving larger vascular structures where reliable hemostasis is critical to patient safety.

How does the two-speed operation improve surgical control?

The two-speed operation allows the surgeon to customize the energy delivery based on the tissue type. Lower speeds or specific settings are used for secure vessel sealing, while the faster or alternative settings facilitate rapid tissue division and dissection, allowing a single tool to perform multiple roles efficiently.

Why is the 35cm shaft length significant for laparoscopic procedures?

The 35cm shaft is the industry standard for laparoscopic reach, providing enough length to access the pelvic or abdominal cavities through a trocar. When combined with the 5mm diameter, it allows the instrument to be used through most standard ports, ensuring compatibility with existing surgical setups.

Is the Microline TSL3 35C a reusable instrument?

No, the 132-136D model is a sterile, single-use disposable instrument. It is designed to be used for a single patient procedure and then discarded. This ensures that the cutting edge and thermal elements are at peak performance for every surgery while eliminating the costs and risks associated with reprocessing.

What is included in a standard order of the TSL3 35C?

The Microline 132-136D TSL3 35C is sold in boxes containing five individually packaged, sterile units. This packaging is designed for hospital and surgical center inventory management, ensuring that surgical teams always have a fresh, reliable electrosurgical instrument ready for use in the operating room.
