The 640nm IPL filter is one of those details that looks minor on a product sheet but becomes central the moment treatment goals shift from broad resurfacing to more controlled energy delivery. For clinics working with Fitzpatrick IV-V skin, the real question is not whether IPL can work, but whether the chosen filter keeps enough energy in the target range while reducing the risk of unnecessary epidermal heating.

What the 640nm filter is doing

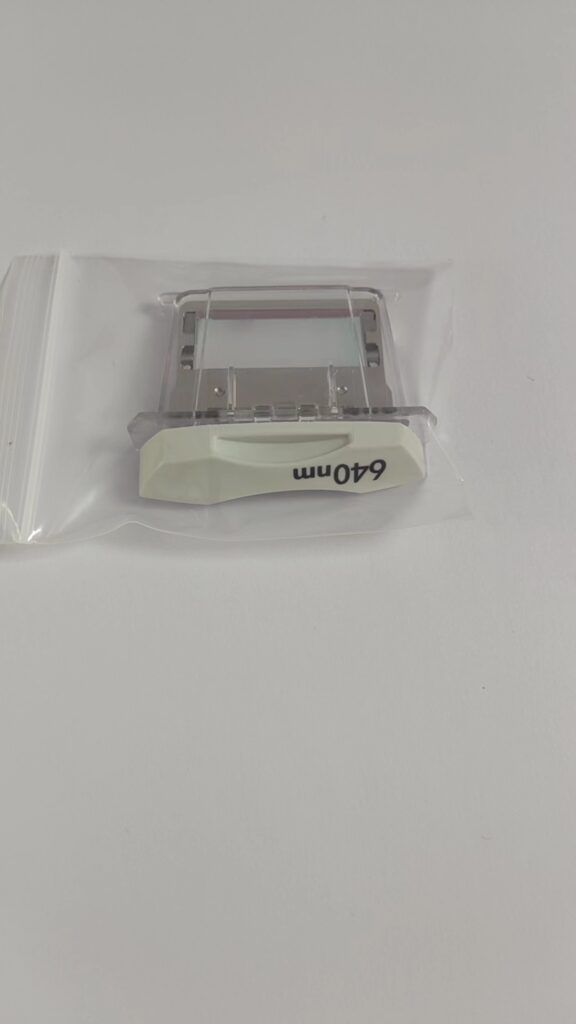

The LUMENIS 640nm IPL filter narrows the output of the broader IPL spectrum so treatment energy is concentrated in a more selective band. In practical terms, that means the light is pushed deeper than shorter wavelengths, which helps when the target is hair follicles or deeper dermal pigment rather than superficial redness alone. This is why the LUMENIS 640nm IPL filter is often discussed in the context of darker skin types and more cautious treatment planning.

The value is not just depth. It is also about reducing the amount of shorter light that tends to be absorbed more heavily by epidermal melanin. When the filter is chosen well, the operator is working with a more controlled balance between penetration and surface safety.

Why it is used in darker skin

For Fitzpatrick IV-V patients, the main concern is not whether the device can generate enough energy, but whether the skin can tolerate it without excess heat at the surface. The 640nm wavelength is often preferred when a clinic wants to reduce the likelihood of burning, post-inflammatory hyperpigmentation, or uneven response caused by aggressive absorption in the upper layers of skin.

That does not mean the filter makes treatment “safe by default.” Skin tone, tanning, hair thickness, treatment area, and pulse settings still matter. In real use, a lower-risk setup is usually the result of matching the filter to the indication, then adjusting fluence and pulse structure conservatively rather than trying to force one setting across all patients.

Also check:  How Much Does a FibroScan Machine Cost in 2026?

Hair removal and pigment care

The 640nm filter is most often associated with IPL hair removal for darker skin types, but its value extends beyond that single use case. Because the wavelength sits in a range that can reach deeper targets more effectively than shorter filters, it can also be relevant when a clinic is managing deeper dermal pigmentation or mixed indication sessions where surface disruption needs to stay limited.

In practice, this is where expectation often diverges from reality. Patients may assume a stronger-looking flash means a better result, while operators know the more important question is whether the energy is reaching the target without overloading the epidermis. The best outcomes usually come from measured treatment planning, not from chasing the most aggressive setting available.

LUMENIS M22 filter choices

The M22 platform is built around interchangeable filters, and that flexibility is part of why it remains widely discussed in clinical aesthetics. The 640nm option sits alongside other expert filters in the Stellar M22 line, including 515, 560, 590, 615, 695, and 755nm, which makes it one tool within a broader treatment strategy rather than a universal answer.

Filter range Typical clinical emphasis Practical use case
515–590nm More superficial targets Surface pigment and lighter skin protocols
615–640nm Deeper selective targeting Hair reduction and deeper pigment considerations
695–755nm Deeper penetration focus Larger or deeper follicular targets

For clinics comparing options, the main decision is not “which filter is best” in the abstract. It is which filter matches the patient profile, treatment goal, and tolerance for surface heat on that day.

Where results break down

The 640nm IPL filter may underperform when it is used as a shortcut for poor case selection. If a patient is recently tanned, has active inflammation, or has a history of pigment instability, the filter alone will not solve the risk problem. In those situations, outcomes can look inconsistent because the issue is not wavelength choice alone but the relationship between wavelength, skin condition, and operator settings.

Also check:  Transparent medical device services: the definitive guide to trusted solutions for clinics and med spas

Another common failure is assuming that deeper penetration automatically means better results. That is not always true. If the energy is too conservative, the treatment may be safe but weak; if it is too aggressive, the skin may react before the target is adequately affected. Real-world success depends on restraint, not just equipment capability.

Maintenance and beam quality

A filter can only do its job if it is kept in stable condition. Clinics should treat original LUMENIS components as precision parts, not general accessories, because dust, residue, scratches, or poor handling can affect beam consistency and treatment feel. Cleaning should be gentle, and storage should prevent repeated surface contact that could alter optical performance over time.

This matters because uneven transmission can create uneven treatment patterns, especially in larger treatment areas where the operator expects consistent coverage pass after pass. For busy clinics, that is also a workflow issue: a clean, intact original filter supports more predictable operation and reduces avoidable uncertainty during sessions.

ALLWILL Expert Views

ALLWILL is positioned around the practical side of medical aesthetics rather than the showroom side, and that perspective matters when clinics evaluate replacement parts and treatment uptime. Its Smart Center model is built for inspection, repair, and refurbishment, so the conversation around filters is usually not just compatibility but whether the part is fit for repeated clinical use. That kind of technical review is more useful than generic product praise because filter performance is tied to handling, storage, and long-term system integrity.

From a sourcing standpoint, ALLWILL’s Lasermatch inventory platform and global biomedical service network are relevant because clinics do not only need the right filter once; they need it again when stock runs low or maintenance schedules change. In that sense, the value is less about a single sale and more about reducing downtime across different markets and service conditions.

Also check:  Is 2021 SOLTA Thermage FLX RF Generator Worth It?

Frequently Asked Questions

Is the LUMENIS 640nm IPL filter better for dark skin?

It is often a better fit for darker skin than shorter filters because it reduces some surface-level absorption and shifts treatment deeper. The result still depends on settings, skin condition, and the specific indication.

Can it be used for hair removal only?

No, it is not limited to hair removal. It is also used in cases where deeper penetration is useful, including some pigment-related treatment planning.

Why might results look inconsistent from one session to the next?

Results can change because of tanning, recent skin irritation, device settings, or operator technique. Even with the same filter, real-world conditions can shift how much energy reaches the target.

How does it compare with shorter M22 filters?

Shorter filters are usually better for more superficial targets, while the 640nm option is chosen when deeper reach and lower epidermal absorption are more important. The right choice depends on the patient and the goal, not just the number.

How long does it take to see a meaningful change?

It usually takes multiple sessions and a realistic treatment interval. IPL is not a same-day transformation, and faster settings are not always better if they increase heat or irritation.

References

  1. Lumenis Stellar M22 IPL Data Sheet

  2. Lumenis M22 General One-Pager

  3. The aesthetic applications of intense pulsed light using the Lumenis system

  4. Intense Pulsed Light and safety considerations in darker skin types

  5. Lumenis One IPL product reference
