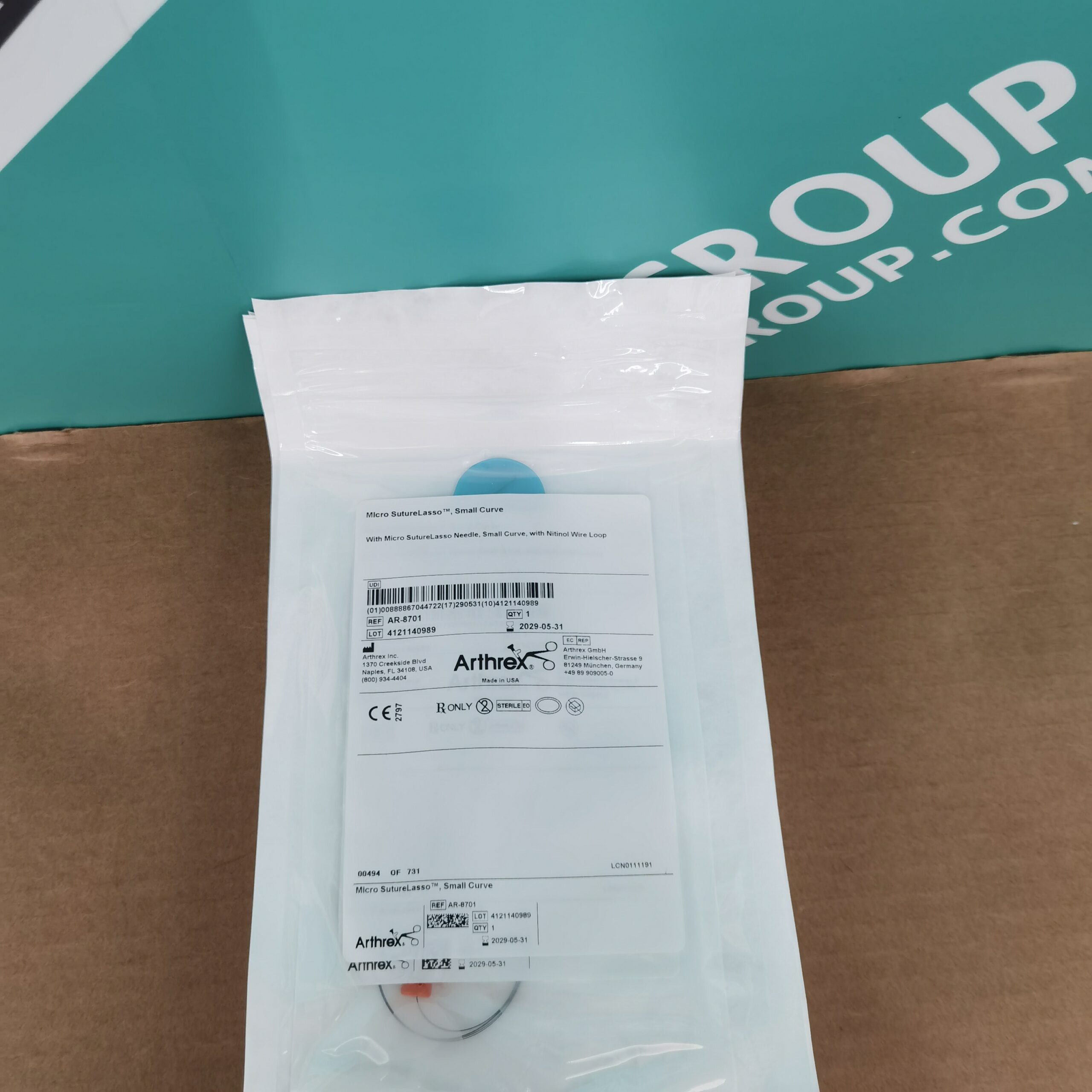

Arthrex AR-8701 Micro SutureLasso, Small Curve

The Arthrex AR-8701 Micro SutureLasso (Small Curve) is a premier arthroscopic instrument engineered for high-precision suture passing in minimally invasive orthopedic procedures. Designed to meet the rigorous demands of small-joint and soft-tissue repair, this device combines a low-profile needle geometry with advanced materials to navigate the most confined anatomical spaces.

As a sterile, single-use solution, the AR-8701 eliminates cross-contamination risks while providing surgeons with the tactile feedback necessary for delicate wrist, shoulder, and knee interventions. Its specialized design is particularly effective for procedures where traditional, bulkier needles might cause unnecessary tissue trauma or lack the required maneuverability.

Core Technology and Design

The engineering of the AR-8701 focuses on balancing structural integrity with a “micro” footprint:

• Tapered Needle Geometry: The needle features a unique graduated design, starting at a sharp 20-gauge tip for effortless tissue penetration and tapering to a robust 16-gauge base. This configuration provides the stiffness needed to prevent bending without sacrificing the precision of a fine-tip instrument.

• Nitinol Shuttle Loop: Every Micro SutureLasso comes pre-loaded with a high-memory Nitinol wire loop. This allows for consistent suture capture and reliable retrieval, even after multiple passes through dense fibrocartilage.

• Ergonomic Command Center: The high-friction plastic handle is shaped to fit the surgeon’s palm, offering a stable grip that translates subtle hand movements into precise needle placement.

Mechanism of Action

The AR-8701 functions as a “shuttle” system for orthopedic sutures. Once the surgeon identifies the repair site, the 20-gauge tip pierces the target tissue (such as a meniscal tear or TFCC lesion). The Nitinol loop is then deployed through the cannula of the needle.

By passing a 2-0 or #2 FiberStick through the loop, the surgeon can “lasso” the suture and retract the instrument, effectively pulling the FiberWire through the tissue. This “inside-out” or “outside-in” capability simplifies complex stitch patterns in tight joint capsules.

Clinical Applications

The Micro SutureLasso is a versatile tool across several orthopedic sub-specialties:

• Hand and Wrist: Specifically optimized for arthroscopic TFCC (Triangular Fibrocartilage Complex) repairs, where space is measured in millimeters.

• Knee Surgery: Highly effective for meniscal repairs, particularly in the posterior horn where access is restricted.

• Shoulder and Elbow: Used in specialized rotator cuff interventions and elbow arthroscopy for ligamentous reconstruction.

• Foot and Ankle: Facilitates suture passing in small-joint stabilization and tendon transfers.

Key Advantages

Compared to traditional 18-gauge spinal needles or standard suture passers, the AR-8701 offers significant clinical benefits:

• Reduced Tissue Trauma: The 1.2 mm tip (20-gauge) creates a smaller puncture hole, preserving the structural integrity of delicate ligaments.

• Enhanced Durability: Unlike standard needles that may bow or kink under pressure, the 16-gauge base provides superior column strength.

• Procedural Efficiency: The pre-loaded Nitinol loop removes the need for manual threading of “stay” sutures, significantly reducing operative time.

• Optimized Access: The Small Curve shaft allows surgeons to “hook” around anatomical obstructions that straight needles cannot bypass.

Technical Specifications

Frequently Asked Questions

What is the primary benefit of the tapered needle design in the AR-8701?

The tapered design provides a dual advantage: the 20-gauge tip ensures a tiny entry point to minimize tissue damage, while the 16-gauge base provides the necessary rigidity. This prevents the needle from bending or kinking when navigating through tough fibrocartilage, a common failure point for standard 18-gauge needles.

Which sutures are compatible with the Arthrex Micro SutureLasso?

The AR-8701 is specifically optimized for use with Arthrex FiberWire products. It most effectively accommodates 2-0 or #2 FiberSticks. The pre-loaded Nitinol loop is designed to securely grip these specific suture diameters, ensuring a smooth transition through the needle cannula without snagging or fraying the material.

Can the AR-8701 be used for both inside-out and outside-in techniques?

Yes, the Micro SutureLasso is highly versatile and supports both techniques. Its small curve and sharp tip make it ideal for “outside-in” TFCC repairs in the wrist, as well as “inside-out” meniscal repairs in the knee, providing surgeons with flexibility based on the patient’s specific anatomy.

Is the Nitinol loop in the Micro SutureLasso reusable?

No, the Arthrex AR-8701 is a strictly single-use, sterile device. Nitinol can lose its “shape memory” after repeated stress, and the small lumen of the needle is difficult to clean effectively. Using a new, sterile device for every procedure ensures maximum loop reliability and eliminates the risk of cross-contamination.

How does the “Small Curve” configuration differ from other SutureLassos?

The “Small Curve” is designed for the tightest joint spaces, such as the ulnocarpal space in the wrist. While larger curves are available for hip or shoulder applications, the small curve allows for a tighter turning radius, making it easier to navigate around bones and reach difficult-to-access soft tissue.

Does this device require a separate suture retriever?

Because the AR-8701 features an integrated Nitinol shuttle loop, it acts as its own retriever. Once the loop is pushed through the needle and the suture is loaded, pulling the loop back into the needle “captures” the suture. This streamlined process reduces the number of instruments needed in the surgical field.
