LUMENIS 560nm IPL Filter

Condition: New
Part #: 560nm IPL Filter

$350.00

SKU: 560nm IPL Filter Categories: , ,
MAKE AN OFFER
Description

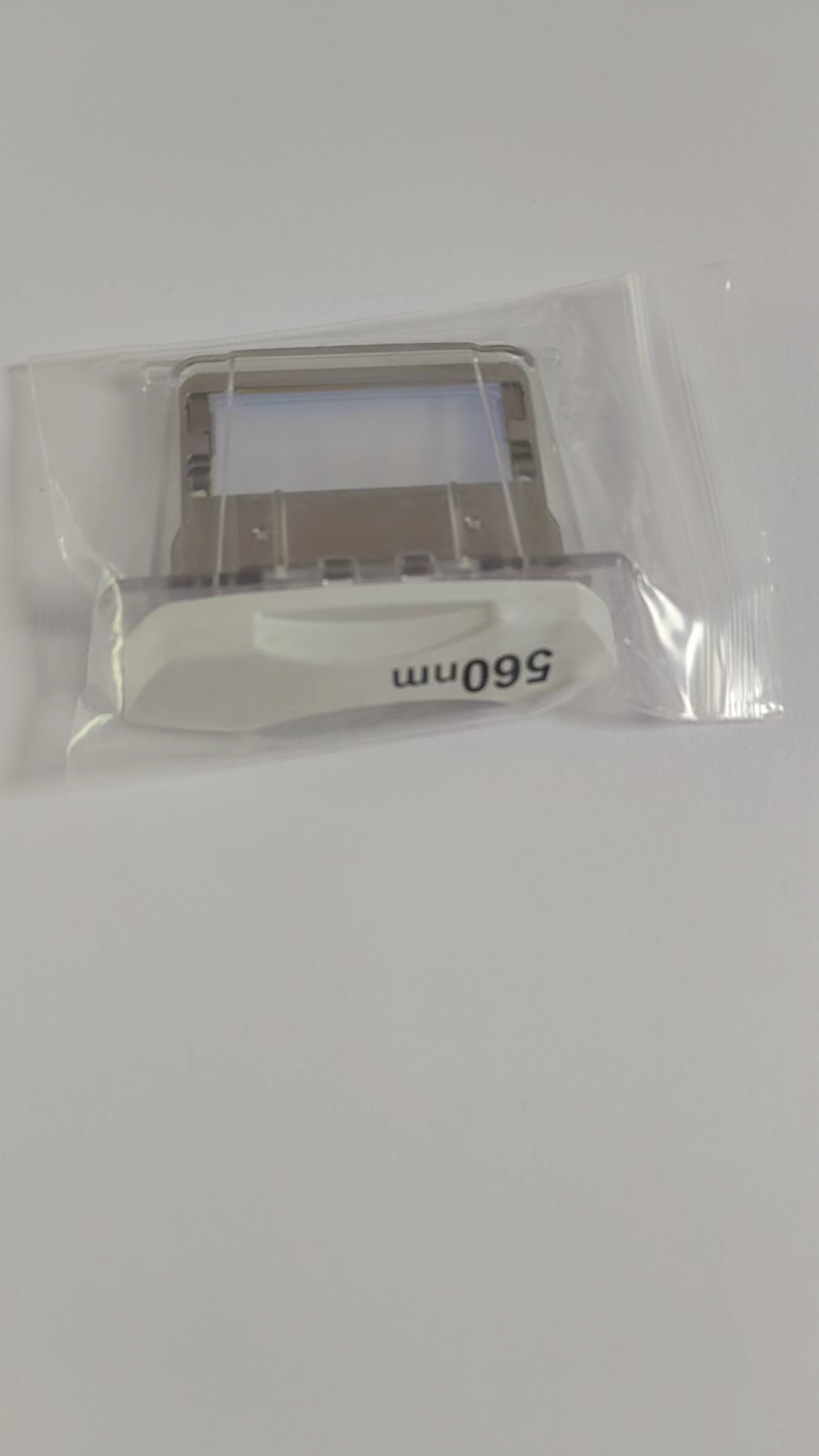

The Lumenis M22 Universal 560nm IPL Filter is a foundational component of the M22 and Lumenis One platforms, engineered to provide high-precision Intense Pulsed Light (IPL) therapy. This “ExpertFilter” is specifically tuned to address the mid-dermal layer, making it the industry’s go-to solution for patients presenting with “mixed” concerns—specifically a combination of solar lentigines (sun spots) and diffuse redness.

By filtering out shorter, more aggressive wavelengths and focusing energy starting at the 560nm mark, this filter allows practitioners to treat a wider range of Fitzpatrick skin types safely while maintaining the high energy fluences required for significant clinical improvement.


Core Technology: OPT™ Precision

The 560nm filter leverages Lumenis’ proprietary Optimal Pulse Technology (OPT™). Unlike standard IPL systems that produce “peak and tail” energy delivery—which can lead to overheating the epidermis—OPT™ provides a square-wave pulse.

  • Controlled Delivery: Energy is distributed uniformly across the entire pulse duration.

  • Predictable Outcomes: Consistent energy means the clinical endpoint (such as mild erythema or pigment darkening) is reached reliably without unexpected hot spots.

  • Enhanced Safety: By eliminating energy spikes, the risk of side effects like blistering or PIH (Post-Inflammatory Hyperpigmentation) is significantly reduced.

Mechanism of Action

The 560nm wavelength acts as a multi-target solution. At this spectrum, the light is highly absorbed by two primary chromophores: Melanin (found in pigmented lesions) and Hemoglobin (found in blood vessels).

  1. Mid-Dermal Penetration: The light penetrates through the epidermis into the papillary and upper reticular dermis.

  2. Photocoagulation: Energy absorbed by hemoglobin converts to heat, collapsing superficial telangiectasias and reducing rosacea-related redness.

  3. Photo-fragmentation: Melanin clusters absorb the light, shattering the pigment into smaller particles that either flake off the surface or are processed by the body’s immune system.


Primary Applications and Uses

The 560nm filter is the most versatile filter in the Lumenis toolkit, commonly used for:

  • Dyschromia: Correcting uneven skin tone and various forms of hyperpigmentation.

  • Rosacea: Reducing the diffuse background redness and flushing associated with inflammatory skin conditions.

  • Telangiectasia: Targeting visible “broken” capillaries on the face and décolletage.

  • Skin Revitalization: Improving overall luminosity and texture through light-based collagen stimulation.

Key Advantages

  • Versatility: Capable of treating both red and brown spots in a single pass, increasing treatment efficiency.

  • Epidermal Protection: Designed for use with integrated SapphireCool™ contact cooling to protect the skin and maximize patient comfort.

  • Rapid Interoperability: The “ExpertFilter” design allows practitioners to switch from 560nm to 590nm or 640nm in seconds, facilitating multi-pass “Stellar M22” protocols.

  • Consistent Fluence: Maintains energy uniformity across large spot sizes for faster treatment of the chest, arms, and back.


The Treatment Process

  1. Assessment: The practitioner evaluates the lesion depth. If the pigment is mid-dermal, the 560nm is selected.

  2. Filter Integration: The filter is slid into the Universal IPL handpiece; the system’s computer-aided recognition automatically updates the internal software parameters.

  3. Application: A cool coupling gel is applied, and the sapphire tip makes contact with the skin.

  4. Pulse Delivery: The OPT™ square pulse is delivered. Patients typically describe the sensation as a brief “rubber band snap.”

  5. Post-Treatment: Pigment typically darkens (the “coffee ground” effect) before naturally exfoliating within 7–10 days.


Technical Specifications

Feature Specification
Wavelength Range 560 – 1200 nm
Target Depth Mid-Dermis
Pulse Technology Optimal Pulse Technology (OPT™)
Platform Compatibility Lumenis M22™, Lumenis One™
Primary Targets Mixed Pigmentation, Rosacea, Telangiectasia
Spot Size Options 15×35 mm²; 8×15 mm²

Frequently Asked Questions

What makes the 560nm filter different from the 515nm filter?

The 515nm filter is highly attracted to melanin and stays very superficial, making it best for light-skinned patients with freckles. The 560nm filter penetrates deeper into the mid-dermis, allowing it to reach both pigment and the vascular structures responsible for rosacea and diffuse redness.

Is the 560nm filter safe for all skin types?

While the 560nm filter is versatile, it is primarily optimized for Fitzpatrick Skin Types I–III. For darker skin types (IV–V), longer wavelengths like the 640nm or 695nm filters are typically safer to prevent the light from being overly absorbed by the skin’s surface melanin.

How many treatments are usually needed with the 560nm filter?

Most patients see a noticeable improvement after a single session, but a series of 3 to 5 treatments spaced 4 weeks apart is standard for optimal “photofacial” results. This allows for gradual clearing of deep pigment and cumulative reduction of vascular redness.

Can I use the 560nm filter for hair removal?

While the 560nm wavelength is absorbed by melanin, it is not the primary choice for hair removal. Specialized hair removal filters (like the 695nm or 755nm) are more effective as they penetrate deeper into the hair follicle while protecting the surrounding skin.

What is the “coffee ground” effect after a 560nm treatment?

After treating pigmented lesions with the 560nm filter, sunspots often turn darker and look like small coffee grounds on the skin. This is a positive clinical sign indicating the pigment has been successfully targeted. These spots naturally slough off within one to two weeks.

How does OPT technology help during a 560nm treatment?

OPT (Optimal Pulse Technology) ensures that the energy delivered is “square,” meaning it stays at a consistent level for the whole pulse. This prevents the “hot spots” found in cheaper IPL systems, significantly reducing the risk of burns and making the procedure much more comfortable.
