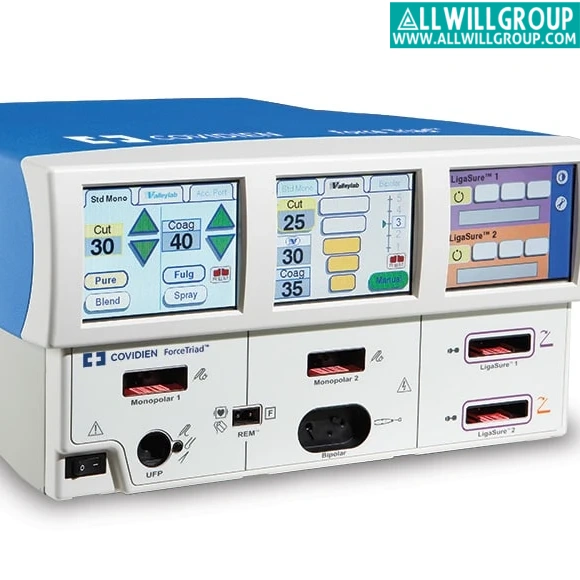

MEDTRONIC COVIDIEN Valleylab force Triad Electrosurgical Unit

Condition: New
Part #: Valleylab force Triad

$15,500.00

Valleylab force Triad
For other Coviden inquiry, please let us know, we carry all products
The ForceTriad™ energy platform is a full-featured electrosurgical system that provides electrosurgical cutting and coagulation, bipolar functionality, and vessel sealing in a single generator. The platform is intended for open and laparoscopic surgical procedures and includes:

TissueFect™ sensing technology across all modalities
Valleylab™ mode for electrosurgery
LigaSure™ fusion technology for vessel sealing
The ForceTriad™ energy platform is the industry’s only full-featured energy platform with remote software upgrade capabilities. Using the Valleylab™ Exchange Software Update System, the unit can be easily updated on site, providing surgeons, nurses and patients with up-to-date, state-of-the-art technology..

SKU: Valleylab force Triad Categories: ,
MAKE AN OFFER
Description

The Medtronic Covidien Valleylab ForceTriad is a premier, all-in-one electrosurgical generator designed to meet the rigorous demands of modern operating rooms. By integrating three distinct energy technologies—monopolar, bipolar, and LigaSure™ vessel sealing—into a single compact unit, the ForceTriad eliminates the need for multiple generators, streamlining surgical workflows in both open and laparoscopic procedures.

Equipped with an intuitive triple-touchscreen interface and automatic instrument recognition, this platform provides surgical teams with unprecedented precision and ease of use. It is engineered to deliver consistent clinical results while reducing thermal spread and shortening overall procedure times.


Core Technology: Intelligent Energy Delivery

The ForceTriad is powered by several proprietary technologies that distinguish it from conventional electrosurgical units (ESUs):

  • TissueFect™ Sensing Technology: This is the “brain” of the generator. It monitors changes in tissue impedance 3,333 times per second, allowing the unit to dynamically adjust its power output to ensure the most efficient energy delivery possible.

  • LigaSure™ Tissue Fusion: This specialized mode uses high current and low voltage to permanently fuse vessel walls, creating a translucent seal that can withstand three times systolic blood pressure.

  • Valleylab™ Mode: A unique combination of hemostasis and dissection that allows surgeons to use lower power settings, resulting in less smoke and reduced charred tissue compared to standard spray coagulation.


Mechanism of Action

The ForceTriad functions by converting standard electrical energy into high-frequency radiofrequency (RF) currents.

  1. Sensing: Upon activation, the TissueFect™ system scans the tissue’s density and moisture content (impedance).

  2. Calibration: The generator automatically calibrates the power output based on the specific instrument attached and the tissue data received.

  3. Fusion & Dissection: In LigaSure™ mode, the energy re-aligns the collagen and elastin in the vessel walls to form a permanent, autogenous seal. In monopolar or bipolar modes, the system provides precise cutting and coagulation with minimal peripheral thermal damage.


Clinical Applications

The versatility of the Valleylab ForceTriad makes it the standard of care across various surgical disciplines:

  • General Surgery: Ideal for colorectal resections and cholecystectomies.

  • Gynecology: Extensively used in hysterectomies and pelvic wall dissections.

  • Urology: Provides precision for prostatectomies and nephrectomies.

  • Thoracic Surgery: Effective for lung resections and managing vascular bundles.

  • Vessel Sealing: Capable of sealing vessels, lymphatics, and tissue bundles up to and including 7mm in diameter.


Key Advantages: ForceTriad vs. Conventional ESUs

Feature Valleylab ForceTriad Conventional ESU
Energy Integration 3-in-1 (Monopolar, Bipolar, Sealing) 2-in-1 (Monopolar & Bipolar only)
Vessel Sealing Range Permanent seals up to 7mm Typically up to 5mm or none
Interface Triple Touchscreen Displays Single screen or analog dials
Instrument Set-up Automatic Detection Manual power setting entry
Adaptability TissueFect™ (3,333 checks/sec) Fixed power or slower sensing

Procedural Workflow

  • Setup: The generator is powered on, and the triple screens illuminate. The system performs a self-diagnostic check.

  • Connection: Plug-and-play instruments are connected. The ForceTriad recognizes the specific tool (e.g., LigaSure Impact™ or ForceTriad™ Handpiece) and sets the appropriate default parameters.

  • Intraoperative Use: The surgeon activates energy via hand or foot switches. The system provides audible and visual feedback when a vessel seal cycle is successfully completed.

  • Post-Operative: The digital interface allows for a review of settings used during the procedure for charting and clinical documentation.


Technical Specifications

Attribute Specification
Weight ~30 lbs (13.6 kg)
Dimensions ~10″ H x 18″ W x 20″ D
Input Frequency 47 – 63 Hz
Sealing Capability Vessels up to 7mm
Safety Systems REM™ (Return Electrode Monitoring) for patient safety
Software Fully upgradeable via USB for future technology

Frequently Asked Questions

What makes the LigaSure technology in the ForceTriad unique? Unlike standard bipolar energy that shrinks vessels, the ForceTriad’s LigaSure mode uses high pressure and controlled energy to fuse vessel walls. This creates a permanent seal by reforming the tissue’s own collagen and elastin, capable of sealing vessels and tissue bundles up to 7mm without the need for clips or sutures.

How does TissueFect™ technology improve surgical safety? TissueFect™ sensing technology monitors tissue impedance 3,333 times per second. By constantly adjusting the power output to meet the specific resistance of the tissue, the system ensures consistent energy delivery while minimizing lateral thermal spread, which protects delicate surrounding structures from accidental heat damage.

Can the ForceTriad handle both laparoscopic and open surgeries? Yes, the ForceTriad is a truly universal energy platform. It is compatible with a wide range of laparoscopic instruments and open-procedure handpieces. Its automatic instrument recognition feature ensures that the generator is always optimized for the specific hardware being used, regardless of the surgical approach.

Does the ForceTriad require manual calibration for different instruments? No, one of its primary efficiency features is automatic instrument recognition. When a compatible Medtronic or Covidien instrument is plugged into the generator, the system identifies the device and automatically configures the appropriate power settings and energy modes, reducing the risk of manual setting errors and saving time.

What is Valleylab Mode, and why is it beneficial? Valleylab Mode is a proprietary waveform that provides a unique blend of cutting and hemostasis. It allows surgeons to perform dissection with significantly lower power settings than traditional modes. This results in less thermal damage to tissue, reduced surgical smoke for better visibility, and faster patient recovery times.

Is the Valleylab ForceTriad compatible with return electrode monitoring? Yes, the platform utilizes the REM™ (Return Electrode Monitoring) system. This safety feature continuously monitors the patient-to-ground-pad interface. If the system detects a compromise in the contact quality of the return electrode, it immediately halts power delivery and alerts the surgical team to prevent potential site burns.
