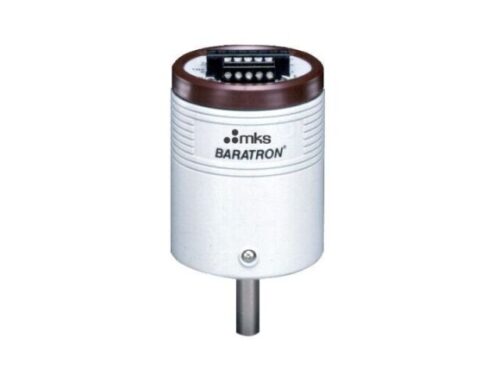

MKS Vacuum/pressure Transducer Vacuum/pressure Transducer

MKS Instruments’ Baratron® Capacitance Manometers, including the renowned 622D, 623B, and 627D series, represent the industry standard for high-accuracy vacuum and pressure measurement. These transducers utilize advanced capacitance-based sensing technology to deliver reliable, gas-independent readings in demanding industrial and research environments.

Designed for longevity and precision, these devices are engineered with rugged stainless steel diaphragms that resist corrosion and mechanical fatigue. Whether you are managing general vacuum processes or complex semiconductor fabrication, the MKS Baratron® series provides the stability and accuracy required for mission-critical applications.

Core Technology: Capacitance Manometry

At the heart of every MKS transducer is the Capacitance Manometer technology. Unlike thermal or Pirani gauges, which depend on the thermal conductivity of the gas being measured, capacitance manometers measure the physical displacement of a diaphragm. This ensures that the pressure reading is direct and gas-independent, meaning you get an accurate Torr or Pascal reading regardless of whether the system contains Argon, Nitrogen, or corrosive process gases.

Mechanism of Action

The transducer operates by measuring the change in electrical capacitance between a tensioned metal diaphragm and a fixed electrode disk.

1. Pressure Differential: As pressure changes in the vacuum system, the stainless steel diaphragm deflects.

2. Capacitance Shift: This physical movement alters the gap between the diaphragm and the internal electrode, changing the electrical capacitance.

3. Signal Conversion: High-precision internal electronics convert this capacitance change into a linear DC voltage output (typically 0–10 VDC) proportional to the pressure.

4. Reference Vacuum: The “back side” of the diaphragm is maintained at an extremely high vacuum by an internal getter, providing a stable zero-point reference.

Key Advantages

• Gas-Independent Accuracy: Measurement is based on force per unit area, providing true pressure readings regardless of gas composition.

• Corrosion Resistance: All-welded Inconel® or stainless steel wetted parts ensure compatibility with aggressive process chemicals.

• Minimal Zero Drift: Advanced sensor design maintains a zero stability of less than 0.12% of the reading, reducing the frequency of re-zeroing.

• Temperature Compensation: Internal circuitry offsets environmental temperature fluctuations to prevent signal “wander.”

• Wide Dynamic Range: Capable of high resolution across ranges from 10⁻⁴ Torr up to atmospheric pressure.

Applications and Uses

The versatility of the MKS Baratron® line makes it the preferred choice for several high-tech sectors:

• Semiconductor Fabrication: Essential for Atomic Layer Deposition (ALD), Chemical Vapor Deposition (CVD), and Etch processes where precise pressure control dictates film quality.

• Thin Film Coating: Used in optical coating and glass manufacturing to ensure consistent plasma stability.

• Freeze Drying (Lyophilization): Ensures exact vacuum levels for pharmaceutical preservation.

• Research & Development: Ideal for high-purity gas delivery systems and vacuum chambers in physics and materials science.

• Leak Detection: High sensitivity allows for the identification of minute pressure rises in sealed systems.

Technical Specifications

The following table outlines the primary differences between common MKS model groups found in industrial inventories:

Frequently Asked Questions

What is the main advantage of an MKS Baratron over a Pirani gauge?

The MKS Baratron is a “direct” pressure gauge, measuring the physical force on a diaphragm. Pirani gauges are “indirect” and depend on gas thermal conductivity. This means the Baratron provides accurate readings regardless of the gas type, whereas Pirani gauges must be calibrated specifically for each different gas.

Why should I choose a heated model like the 627D or 625H?

Heated transducers are maintained at a constant internal temperature (typically 45°C or 100°C). This prevents process gases from condensing on the diaphragm, which can cause significant measurement errors and corrosion. They are highly recommended for CVD, ALD, and any processes involving condensable vapors or harsh chemicals.

What does “zero drift” mean and why is the 0.12% spec important?

Zero drift refers to the signal changing when no pressure is applied. Low zero drift (below 0.12%) ensures that your baseline remains stable over time. This is critical for long-term process repeatability, as it reduces the need for manual calibrations and prevents “process creep” in your manufacturing yields.

Can these transducers be used with corrosive gases?

Yes. MKS Baratron transducers feature wetted surfaces made of stainless steel or Inconel. This “all-metal” construction is specifically designed to withstand aggressive gases used in semiconductor etching and deposition, providing much higher durability than sensors with polymer seals or sensitive filaments exposed to the gas.

What type of electrical connections do these models use?

Many models, such as the 622D and 627D, utilize standard D-subminiature connectors or specialized TBE bayonet-style connectors for secure industrial interfacing. These allow for easy integration into existing PLC systems or dedicated MKS power supply and readout units, providing a 0–10V analog output signal.

Is there a specific orientation required for mounting the transducer?

While these transducers are rugged, it is best practice to mount them with the inlet port facing downward. This prevents particles or liquid condensates from settling on the diaphragm. If the unit is a heated model, proper orientation also ensures optimal thermal distribution throughout the internal sensor housing.
