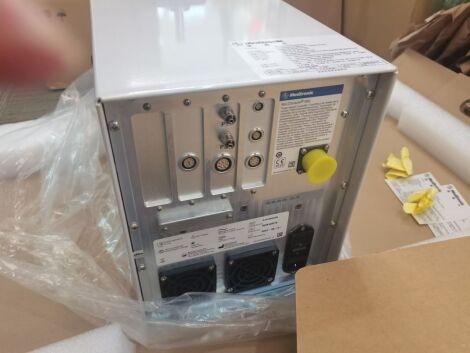

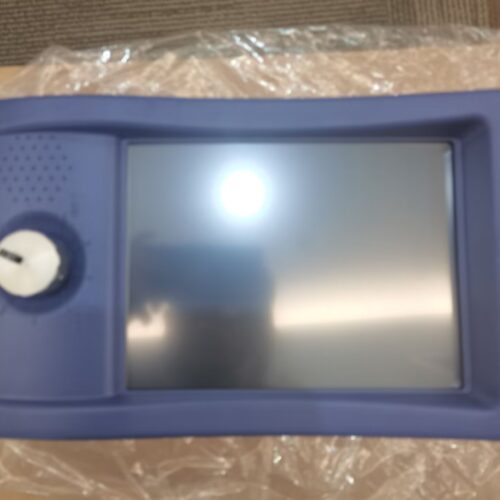

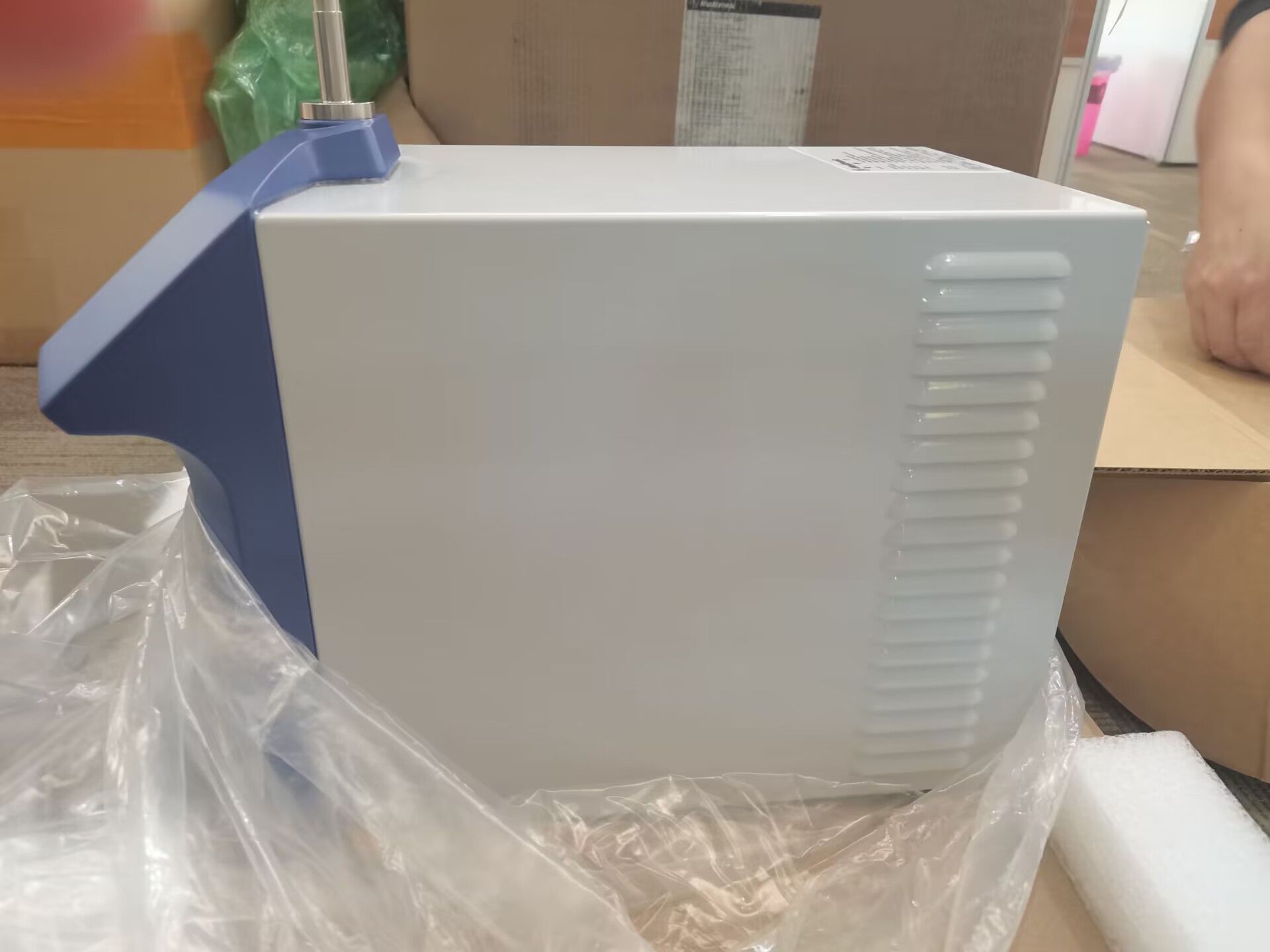

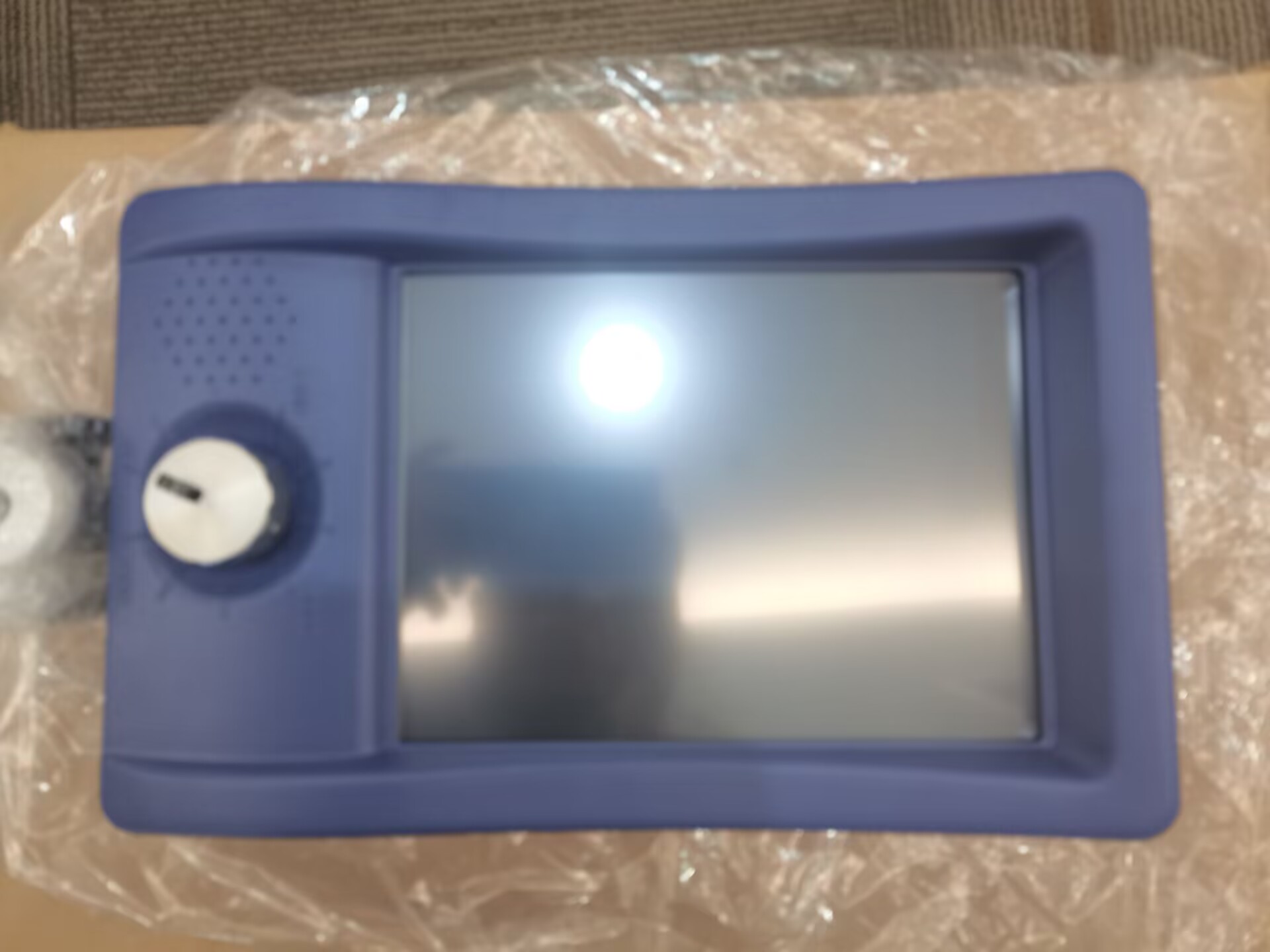

MEDTRONIC 560BCS1 Bio-Console™ 560 Pump Speed Controller with Safety System Module

Condition: New
Part #: 560BCS1

$53,000.00

MEDTRONIC 560BCS1 Bio-Console™ 560 Pump Speed Controller with Safety System Module

SKU: 560BCS1 Category:
MAKE AN OFFER
Description

The Medtronic 560BCS1 Bio-Console™ 560 is a sophisticated pump speed controller designed to anchor the Bio-Console 560 system. It provides high-precision management of extracorporeal blood flow, primarily utilized in Intra-Aortic Balloon Pump (IABP) therapy and other cardiac support procedures.

Equipped with an integrated Safety System Module, the 560BCS1 is engineered for the high-stakes environment of the Cardiac Intensive Care Unit (CICU) and the Operating Room. Its architecture focuses on maintaining hemodynamic stability through rigorous monitoring and regulation of pump speeds, ensuring that patients receive consistent coronary perfusion and increased cardiac output when their natural heart function is compromised.


Core Technology: Integrated Safety and Synchronization

The 560BCS1 represents a significant leap over traditional controllers by embedding safety logic directly into the hardware.

  • Integrated Safety System Module: This dedicated module provides real-time oversight of pump parameters, automatically adjusting or alerting staff to deviations to prevent clinical complications.

  • Modular Compatibility: The unit is designed to interface with a specific ecosystem of Medtronic components, including the 560A Motor, TX50 Flow Meter, and HC150A Hand Crank for manual backup.

  • BioTrend Integration: Supports the BIOTREND 95198-004 oxygen saturation and hematocrit monitor, allowing for a data-driven approach to perfusion management.


Mechanism of Action: Hemodynamic Optimization

The Bio-Console 560BCS1 operates by synchronizing pump activity with the patient’s native cardiac cycle. In the context of IABP therapy, the controller dictates the precise timing of balloon inflation and deflation:

  1. Inflation (Diastole): The controller triggers inflation at the onset of diastole, increasing aortic pressure and retrograde blood flow to the coronary arteries, thereby improving myocardial oxygenation.

  2. Deflation (Systole): The balloon is rapidly deflated just before the heart contracts. This creates a “vacuum” effect in the aorta, reducing afterload and making it easier for the left ventricle to eject blood.

  3. Real-Time Regulation: The speed controller adjusts the RPM of the attached pump motor based on programmed flow rates and safety sensor feedback to ensure the target cardiac index is maintained.


Clinical Applications and Indications

The 560BCS1 is a versatile tool for critical cardiac care, supporting clinicians in several high-acuity scenarios:

  • Refractory Left Ventricular Failure: Providing mechanical circulatory support to bridge patients to recovery or transplant.

  • Cardiogenic Shock: Managing acute hemodynamic instability following a myocardial infarction.

  • High-Risk Percutaneous Coronary Intervention (PCI): Prophylactic support during complex stenting procedures.

  • Intra-hospital Transport: Its portable design allows for continuous, reliable therapy while moving patients between the OR, Cath Lab, and ICU.


Key Advantages

Feature Medtronic 560BCS1 Bio-Console Traditional IABP Units
Safety Logic Integrated Safety System Module Often relies on separate componentry
Mobility Optimized for transport and stationary use Primarily stationary or bulky
Integration Seamless accessory synchronization Limited third-party or modular support
Precision Advanced timing and speed regulation Standardized cycle controls

Technical Specifications

The 560BCS1 is designed to be the central hub for a fully functional perfusion circuit.

  • System Model: 560BCS1

  • Power Compatibility: Optimized for standard hospital grids (e.g., ACT PLUS–110V Timer compatibility).

  • Compatibility Matrix:

    • Motor: 560A

    • Manual Override: HC150A Hand Crank

    • Flow Monitoring: 95184-001 TX50 Flow Meter

    • Perfusion Monitoring: BIOTREND 95198-004

  • Form Factor: Portable, pole-mountable console unit with high-visibility safety indicators.


Frequently Asked Questions

What is the primary function of the Safety System Module in the 560BCS1?

The Safety System Module acts as a real-time monitor that regulates pump speed and detects anomalies. It is designed to protect the patient by ensuring the pump operates within safe hemodynamic limits, automatically alerting clinicians or adjusting flow if parameters deviate from the programmed therapeutic range.

How does the Bio-Console 560 handle intra-hospital transport?

The Medtronic 560BCS1 is specifically designed with portability in mind. Its robust build and reliable power management allow it to provide continuous cardiac support as patients move from the catheterization lab to the ICU, ensuring therapy is never interrupted during high-risk transfers.

What accessories are required for a complete setup?

To achieve full functionality, the 560BCS1 should be integrated with the 560A Motor, the TX50 Flow Meter for accurate volume tracking, and the HC150A Hand Crank as a manual safety backup. Additional monitoring is provided by the BioTrend system and ACT Plus timers.

Can this system be used for pediatric cardiac support?

While the Bio-Console 560 is a versatile pump controller, its use in pediatric cases depends on the specific pump head and catheters attached. Clinicians must ensure that all connected accessories and the programmed flow rates are sized appropriately for the patient’s body surface area and physiological needs.

How does this unit improve coronary perfusion?

By precisely synchronizing with the cardiac cycle, the 560BCS1 ensures the pump provides maximal support during diastole. This increases the pressure at the root of the aorta, which drives more oxygen-rich blood into the coronary arteries, supporting the recovery of stressed heart muscle.

What happens in the event of a power failure?

The system is designed for critical care redundancy. Beyond standard battery backups often found in clinical environments, the 560BCS1 integrates with the HC150A Hand Crank. This allows the surgical team to maintain mechanical blood flow manually should all electrical power sources be exhausted.
