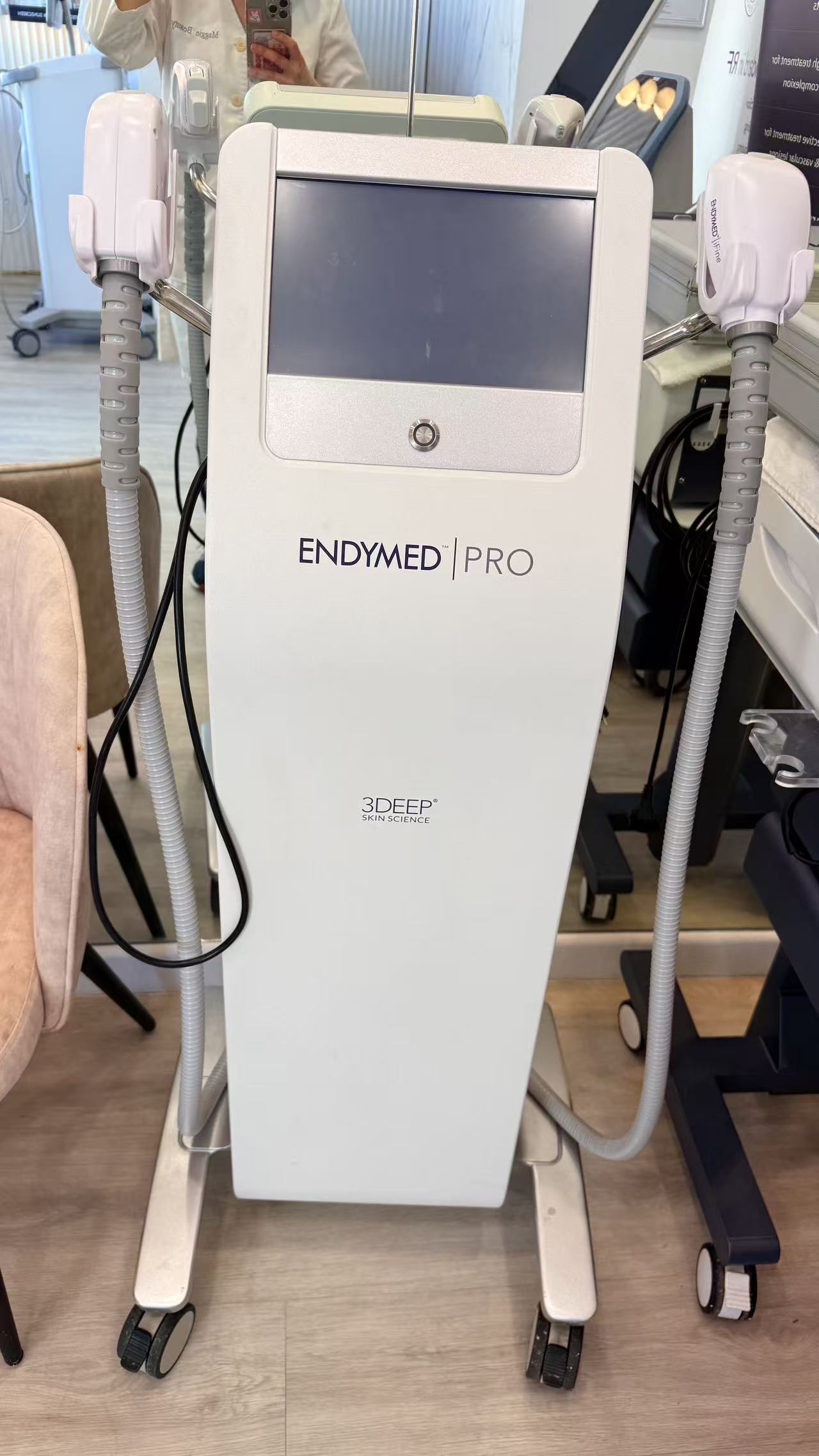

Endymed Pro RF Microneedling And Contouring Device

For medical aesthetics directors, dermatology clinic buyers, and international medical device distributors, the acquisition of energy-based devices hinges on two metrics: clinical uptime and return on investment (ROI). Equipment failure or calibration drift results in directly lost clinical hours, patient dissatisfaction, and compromised safety margins.

This 2022 Endymed Pro platform undergoes a rigorous, multi-point biomedical verification process before dispatch. Every critical subsystem—including the multi-source radiofrequency generators, real-time impedance feedback loops, and cooling interlocks—is fully tested and calibrated to original manufacturing specifications. By securing a high-tier, pre-owned system complete with CE Medical Device certification and FDA clearance, clinics eliminate the steep initial depreciation curve of new hardware while maintaining strict clinical compliance and operational safety.

Technical Architecture & Clinical Benefits

• Patented 3DEEP® Multi-Source RF Technology: Unlike conventional mono-polar or bi-polar configurations that risk epidermal overheating, this platform utilizes multiple co-axial RF generators. By controlling the phase interaction between energy fields, the thermal energy is driven deep into the dermis (target dermal temperature: 52°C–55°C), while keeping the epidermal temperature under 42°C. This eliminates the risk of post-inflammatory hyperpigmentation (PIH) and thermal burns, making it safe for all skin phototypes (Fitzpatrick I-VI).

• Intensif Fractional RF Microneedling (0.5 mm – 5.0 mm): Features gold-plated, non-insulated micro-needles utilizing Fractional Pulse Mode (FPM™). The non-insulated design allows for volumetric heating along the entire needle shaft rather than just the tip, accelerating the treatment of severe acne scars, striae distae (stretch marks), and deep rhytids with minimized epidermal tearing.

• iFine Precision Facial Applicator: Engineered specifically for areas with low dermal thickness and high nerve density, such as the perioral zone and periorbital margins. The targeted energy distribution mitigates the risk of structural fat atrophy while effectively treating blepharoptosis (mild eyelid sagging) and fine lines.

• Small / Mini-Shaper Contour Handpiece: Optimized for transitional anatomical zones such as the submental region, jawline, upper arms, and knees. Delivers focused energy to tighten the platysmal band and reduce localized submental adiposity.

• Shaper Large Body Contouring Handpiece: Utilizes a large-area concentric electrode array designed for deep volumetric heating of the abdomen, thighs, and flanks. Accelerates adipose tissue metabolism to reduce body circumference and smooth fibrous cellulite without systemic downtime.

• Real-Time Impedance & Motion Sensors: Continuous feedback loops dynamically adjust power output based on instantaneous tissue resistance. Automated shut-off mechanisms trigger instantly upon loss of full skin contact or cessation of handpiece movement, eliminating the risk of electrical arcing or localized hot spots.

B2B Quality Validation & Risk Mitigation Matrix

When investing in secondary-market medical aesthetic hardware, component integrity dictates long-term performance. Below is the technical variance between an OEM-Spec Certified Refurbished Device and substandard alternatives:

Strategic FAQ for Medical Device Buyers

How does the 3DEEP® technology solve the common issue of epidermal overheating during deep dermal remodeling?

Conventional single or bi-polar RF devices force energy through the skin surface, creating a thermal gradient that peaks at the epidermis. This requires aggressive cooling and limits deep energy delivery. 3DEEP® technology utilizes multiple software-controlled RF generators working in tandem. By manipulating the magnetic fields between the electrodes, the energy forces itself deeper into the tissue, shifting the thermal peak to the deep dermis (52°C–55°C) while keeping the skin surface safely under 42°C. This prevents surface blistering and hyperpigmentation risks.

Why is the calibration of the real-time skin impedance sensor critical for clinical compliance?

Every patient’s skin exhibits distinct electrical impedance based on hydration levels, adipose thickness, and tissue density. If an RF system lacks precise impedance calibration, it cannot calculate the correct voltage required to deliver the target wattage safely. A calibrated system dynamically alters energy delivery milliseconds after contact, protecting the patient from localized electrical shocks, uneven tissue heating, and therapeutic under-dosing.

Can this system handle continuous back-to-back clinical schedules without thermal shutdown?

Yes. The internally serviced cooling arrays and upgraded power capacitors on this 2022 unit ensure continuous duty cycles. The built-in motion sensors and temperature interlocks safeguard the internal RF circuitry, allowing high-throughput clinics to operate the device throughout standard daily treatment shifts without experiencing thermal drift or emergency system shutdowns.

Technical Specifications

• Manufacturer: Endymed Medical (Israel)

• Model: Endymed Pro

• Year of Manufacture: 2022

• Condition: Used – Excellent

• Maximum RF Power Output: 85 Watts

• Technology Framework: 3DEEP® Multi-Source RF + FPM™ Fractional Pulse Mode

• Configuration Profile: Main Control Workstation + 4 Interchangeable Applicators (Intensif, iFine, Mini-Shaper, Shaper)

• Microneedle Adjustability Range: 0.5 mm to 5.0 mm (mechanical depth selection)

• Regulatory Clearances: CE Medical Device Certified, FDA Cleared

• Electrical Compatibility: Multi-voltage internal power supply adapted for global clinical infrastructure

• Deployment Readiness: Fully tested, system calibrated, complete pre-shipment diagnostics report included
