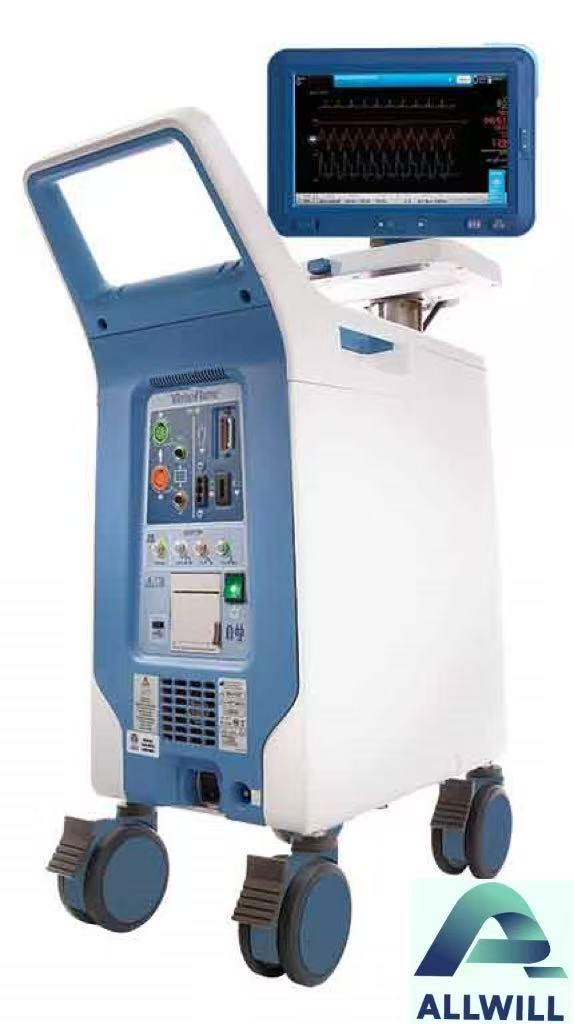

TELEFLEX IAP-0700 AC3 Optimus Intra-Aortic Balloon Pump

Condition: New
Part #: IAP-0700

$80,000.00

For other TELEFLEX inquiry, please let us know, we carry all products
Intra-Aortic Balloon Pumps – Interventional Product Catalog
For patients requiring mechanical cardiac support, the performance of your IABP can mean all the difference. With the onset of an elevated heart rate or arrhythmia, the patient’s survival can suddenly depend on the ability of the IABP to keep pace with the situation. The AC3 Optimus Intra-Aortic Balloon Pump provides intra-beat inflation timing accuracy across the broadest range of patient conditions — including those with severe arrhythmias. 1-2

Everything you’re looking for in an IABP

Critical therapy delivery when it matters most
Outstanding clinical support to ensure effective delivery
Designed for simplicity, engineered for economy..

SKU: IAP-0700 Categories: ,
MAKE AN OFFER
Description

The Teleflex AC3 Optimus (IAP-0700) is a premier intra-aortic balloon pump designed to provide critical hemodynamic support through high-precision counterpulsation therapy. Engineered for the most demanding clinical environments—from the Cardiac Cath Lab and ICU to emergency transport—the AC3 Optimus helps clinicians stabilize patients by increasing myocardial oxygen supply while simultaneously decreasing demand.

By combining the sophisticated WAVE algorithm with an intuitive, automated interface, the AC3 Optimus reduces the cognitive load on healthcare providers, allowing them to focus on patient care rather than manual device adjustments.


Core Technology

The AC3 Optimus is built upon a foundation of timing accuracy and automation, ensuring effective therapy even in the most hemodynamically unstable patients.

  • WAVE Algorithm: This proprietary software provides 98% intra-beat timing accuracy. It is specifically designed to handle challenging arrhythmias and heart rates up to 200 bpm by analyzing the arterial pressure waveform in real-time.

  • AutoPilot™ Automation: This feature automates signal selection (ECG or Pressure), timing adjustments, and alarm management, ensuring the pump remains optimized without constant manual intervention.

  • 13.3-Inch High-Resolution Touchscreen: A large, vivid display provides clear visualization of critical data, including ECG, arterial pressure, and balloon pressure waveforms, even from across the room.


Mechanism of Action: Counterpulsation Therapy

The AC3 Optimus operates on the principle of inflation during diastole and deflation during systole.

  1. Inflation (Diastole): The balloon inflates at the onset of diastole (the dicrotic notch). This displaces blood toward the coronary arteries, significantly enhancing coronary perfusion.

  2. Deflation (Systole): The balloon deflates immediately before the heart contracts. This creates a vacuum effect (afterload reduction), making it easier for the left ventricle to eject blood, thereby increasing total cardiac output and reducing myocardial oxygen consumption.


Clinical Applications

The AC3 Optimus is utilized across various high-acuity cardiac scenarios, including:

  • Acute Myocardial Infarction: Managing cardiogenic shock or mechanical complications.

  • High-Risk Percutaneous Coronary Intervention (PCI): Providing prophylactic support during complex stenting procedures.

  • Post-Cardiac Surgery: Aiding in the weaning of patients from cardiopulmonary bypass.

  • Bridge to Recovery/Transplant: Stabilizing patients with refractory heart failure.

  • Critical Transport: Sustaining hemodynamic stability during inter-hospital transfers.


Key Advantages: AC3 Optimus vs. Traditional IABPs

Feature AC3 Optimus (IAP-0700) Traditional IABP Systems
Timing Technology WAVE Algorithm (98% accuracy) Manual or basic R-wave trigger
Arrhythmia Handling Up to 200 bpm with intra-beat tracking Frequent timing errors or “slaving”
Automation AutoPilot™ (Full signal & alarm automation) Manual signal selection required
Display Interface 13.3″ Color Touchscreen Basic LCD or small segmented screens
Battery Life 90–180 Minutes Typically 30–60 Minutes
Leak Detection Active pneumatic monitoring Passive or delayed detection

Technical Specifications

Component Detail
Model Number IAP-0700
Trigger Modes ECG (R-wave), Arterial Pressure, Internal/Pacer
Display Size 13.3-inch Color Touchscreen
Battery Type High-capacity internal backup (90-180 min)
Pneumatics Helium-driven, active leak detection
Mobility Integrated transport wheels and compact footprint

Frequently Asked Questions

How does the WAVE algorithm handle rapid arrhythmias?

The WAVE algorithm analyzes the arterial pressure waveform on every single beat. This allows the AC3 Optimus to maintain 98% timing accuracy even when the patient’s heart rate is irregular or as high as 200 beats per minute, ensuring consistent hemodynamic support when it is needed most.

What does the AutoPilot feature actually automate for the clinician?

AutoPilot manages the most critical aspects of IABP operation, including the selection of the best trigger signal (ECG or Pressure), the precise timing of inflation and deflation, and the management of technical alarms. This automation reduces manual adjustments and improves therapeutic reliability in fast-paced environments.

How long can the AC3 Optimus run during a power failure or transport?

The AC3 Optimus is equipped with a high-capacity battery that provides between 90 and 180 minutes of continuous operation. This extended backup time is significantly higher than traditional pumps, making it a safer option for intra-hospital transfers and emergency medical transport.

Can this device detect gas leaks in the balloon circuit?

Yes, the AC3 Optimus features active pneumatic leak detection. The system constantly monitors the integrity of the helium circuit. If a minute leak is detected in the balloon or the tubing, the device alerts the clinician immediately to prevent potential complications like gas embolisms.

What information is visible on the 13.3-inch touchscreen?

The high-resolution display shows real-time ECG traces, arterial pressure waveforms, and balloon inflation/deflation waveforms. It also provides clear indicators for the current trigger mode, augmentation levels, and helpful on-screen prompts for troubleshooting alarms or adjusting therapy settings.

Is the AC3 Optimus suitable for use in the Cardiac Cath Lab?

Absolutely. Its compact design and advanced automation make it ideal for the Cath Lab. The WAVE algorithm ensures it can synchronize with the patient’s heart even during complex interventions where heart rates may fluctuate, providing stable support during high-risk PCI procedures.
