CONMED 10k150

Condition: New
Part #: 10k150

$697.00

SKU: 10k150 Categories: ,
MAKE AN OFFER
Description

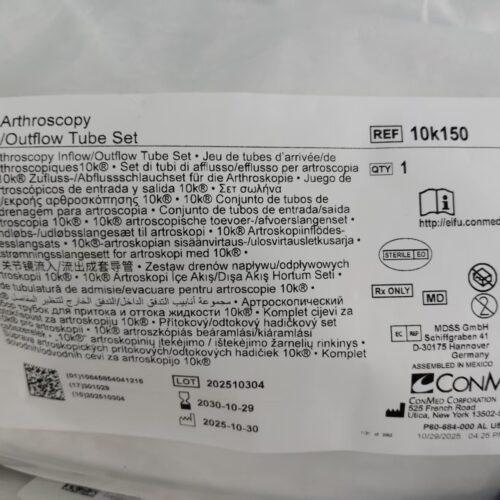

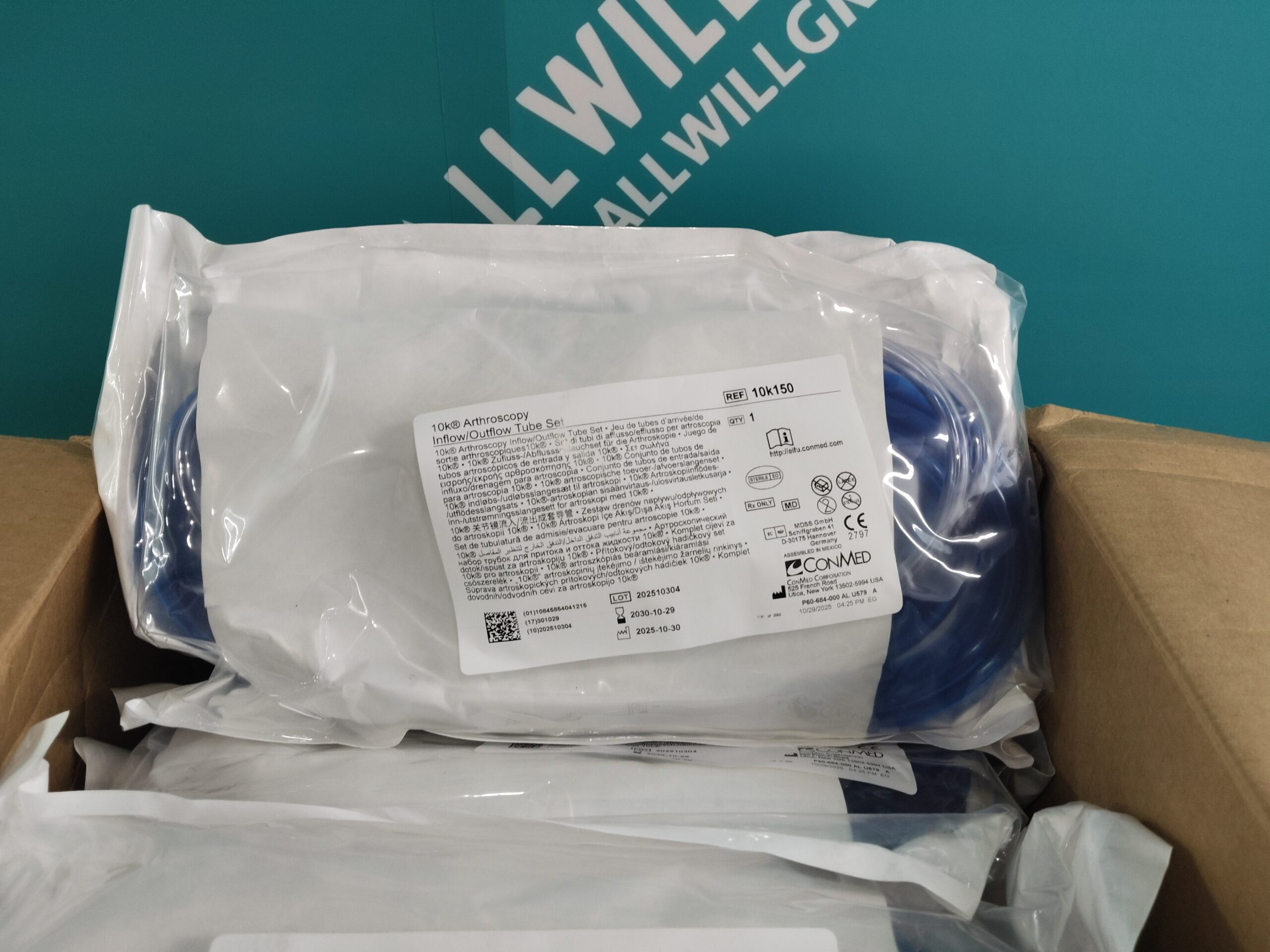

CONMED 10k150 Inflow/Outflow Tubing Set: Optimized Fluid Management for Arthroscopy

The CONMED 10k150 is a specialized, sterile, single-use tubing set engineered specifically for integration with the 10k® Arthroscopy System. In the high-stakes environment of orthopedic surgery, visual clarity is paramount. The 10k150 provides a sophisticated closed-loop fluid management solution, delivering controlled irrigation and rapid removal of debris and blood.

By maintaining a pristine surgical field, this system allows surgeons to perform complex joint procedures with enhanced precision. Designed for single-patient use, it eliminates the logistical burdens of sterilization while ensuring the highest standards of patient safety and infection control.


Core Technology: Dual-Channel Architecture

The 10k150 is built on a Dual-Channel Inflow/Outflow design. Unlike traditional gravity-fed or single-line systems, this architecture allows the 10k® pump to manage the internal environment of the joint dynamically.

  • Synchronized Management: The system simultaneously regulates the fluid entering the joint (inflow) and the fluid being suctioned out (outflow).

  • Precision Cassette: The tubing features an integrated cassette that interfaces with the 10k® pump’s sensors to provide real-time pressure feedback.

  • Latex-Free Materials: Constructed from high-grade, biocompatible polymers to prevent allergic reactions during prolonged intra-articular contact.

Mechanism of Action: Dynamic Pressure Regulation

The 10k150 functions as the “circulatory system” of the arthroscopic procedure. When loaded into the CONMED 10k® Fluid Management System, it operates through a specific mechanical sequence:

  1. Pressure Maintenance: The pump utilizes the tubing’s inflow line to maintain intra-articular pressure up to 150 mmHg. This distends the joint capsule, providing the space necessary for instrument maneuverability.

  2. High-Volume Lavage: To clear visual obstructions like bone “snow” or blood, the system supports flow rates up to 2000 ml/min, effectively flushing the cavity without losing distension.

  3. Debris Evacuation: The outflow channel works in tandem with the inflow to remove waste fluid into a canister, ensuring that the pressure remains stable even during high-flow suction.


Key Advantages

  • Enhanced Visualization: High flow rates and steady pressure prevent “red-out” during shaving or ablation, reducing total operative time.

  • Operational Efficiency: The intuitive one-step cassette loading allows for quick, one-handed insertion into the pump, streamlining Operating Room (OR) setup and transitions.

  • Safety & Sterility: As a sterile, single-use device, it significantly reduces the risk of cross-contamination and the costs associated with reprocessing reusable components.

  • Consistent Performance: Precise pressure control minimizes the risk of fluid extravasation into surrounding soft tissues, a common complication in arthroscopic hip and shoulder surgery.

Clinical Applications

The 10k150 tubing set is essential for a wide range of arthroscopic interventions where cavity expansion and irrigation are required:

  • Knee Surgery: Meniscus repairs, ACL/PCL reconstructions, and synovectomies.

  • Shoulder Surgery: Rotator cuff repairs, labral stabilization, and subacromial decompressions.

  • Hip Arthroscopy: Labral refixation and treatment of femoroacetabular impingement (FAI).

  • Small Joint Procedures: Efficiently manages irrigation for wrist and ankle arthroscopy.


Technical Specifications

Feature Specification
Manufacturer CONMED
Model 10k150
Compatibility CONMED 10k® Fluid Management System
Type Dual-Channel (Inflow and Outflow)
Maximum Flow Rate 2000 ml/min
Pressure Range 0 – 150 mmHg
Sterility Gamma Sterile, Single-Use
Latex Status Latex-Free
Loading Mechanism One-step cassette system

ALLWILL Equipment Solutions: Quality Assurance

At ALLWILL, we understand that surgical outcomes depend on the reliability of every component. Through our Smart Center, we offer verified solutions for surgical tubing and accessories. Every set is sourced via our ALLWILLmatch platform and MET vendor network, ensuring that healthcare providers have timely access to genuine CONMED components. Our rigorous inspection processes reduce procurement risks and support consistent surgical workflows across various orthopedic specialties.


Frequently Asked Questions

Is the CONMED 10k150 tubing set compatible with other arthroscopy pumps?

No, the 10k150 is designed exclusively for the CONMED 10k® Arthroscopy System. The integrated cassette is specifically calibrated to interface with the 10k® pump’s sensors and motor, ensuring accurate pressure monitoring and flow regulation that third-party pumps cannot replicate safely or effectively.

How does the 10k150 help prevent fluid extravasation?

Fluid extravasation occurs when intra-articular pressure becomes too high or inconsistent. The 10k150 tubing set works with the 10k® pump’s software to provide real-time pressure feedback. This allows the system to maintain a steady, user-defined pressure (up to 150 mmHg), preventing dangerous spikes that force fluid into surrounding tissues.

Why is the dual-channel design superior to single-channel inflow?

A dual-channel design manages both the entry and exit of fluid simultaneously. This creates a balanced environment where the joint remains distended while “dirty” fluid is constantly replaced with “clean” saline. Single-channel systems often struggle to maintain visualization during heavy suction, as they cannot replenish fluid as quickly as it is removed.

Can the 10k150 tubing set be re-sterilized for multiple uses?

No. The CONMED 10k150 is labeled as a single-use, sterile device. Re-sterilization can compromise the integrity of the plastic polymers and the precision of the cassette mechanism. Furthermore, reuse poses a significant risk of cross-contamination and bioburden buildup, which can lead to post-operative infections and patient harm.

What is the maximum flow rate, and when is it typically used?

The system supports flow rates up to 2000 ml/min. These high rates are typically utilized during the “lavage” or “flush” modes of the 10k® pump. This is critical when the surgeon needs to quickly clear the joint of bone fragments, blood, or debris to regain visual orientation.

What are the benefits of the “one-step” cassette loading?

In a busy OR, speed and simplicity are vital. The 10k150’s one-step cassette allows the circulating nurse or technician to load the pump with a single hand. This reduces the time required for setup and minimizes the chance of loading errors that could lead to system malfunctions during the procedure.
