The LUMENIS 615nm IPL filter is a specialized wavelength setting used in Lumenis M22 and Stellar M22 intense pulsed light systems to target vascular lesions, pigmentation, and overall skin rejuvenation with high precision. Understanding how this 615 nm filter works, which skin conditions it treats best, and how it compares to other IPL filters is essential for clinics and practitioners who want to maximize safety, results, and ROI.
What Is the LUMENIS 615nm IPL Filter?

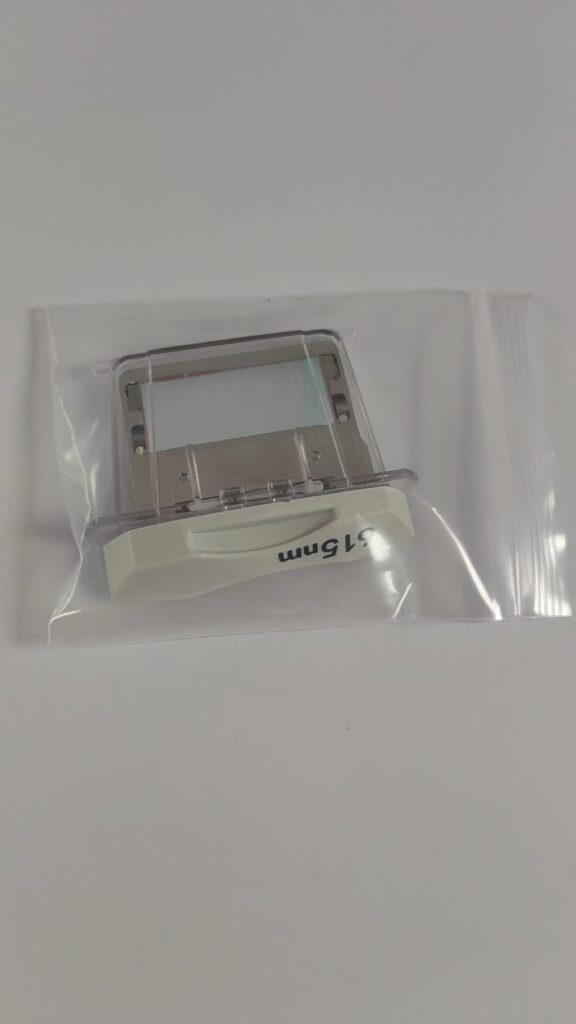

The LUMENIS 615nm IPL filter is a cut-off filter designed for the Universal IPL handpiece on systems such as the Lumenis M22 and Stellar M22. It blocks shorter wavelengths and allows light with wavelengths longer than 615 nm to pass through, concentrating energy in the yellow‑red light spectrum that is ideal for vascular and certain pigmentary targets in the skin.
This filter is engineered as a removable glass or sapphire window placed inside the Universal IPL handpiece. It is part of an ExpertFilters range that typically includes 515, 560, 590, 615, 640, 695, and 755 nm options, allowing practitioners to match wavelength selection to the specific skin indication. By choosing the 615 nm filter, clinicians shift treatment toward deeper chromophores such as superficial vessels, some deeper pigmented lesions, and hair follicles, with relatively less interaction in the very superficial epidermis compared with lower cut-off filters.
Because it is wavelength‑specific and integrated into a calibrated system, the 615 nm filter also helps standardize treatment outcomes and parameters across different operators and locations, which is important for multi‑provider clinics and large aesthetic centers.
How the 615nm IPL Filter Works on Skin
Intense pulsed light technology uses a broad spectrum of light that is shaped by filters to selectively target chromophores such as melanin and hemoglobin. The 615 nm filter allows a band of longer wavelengths to reach the skin, narrowing the effective spectrum to those frequencies that better penetrate into the mid‑dermis.
At around 600–620 nm, light is well absorbed by hemoglobin in blood vessels while reducing superficial melanin absorption compared with shorter wavelengths. This makes the 615 nm range especially effective for bright red superficial vessels, telangiectasias, and some mixed vascular‑pigment issues. The energy converts to heat within the target vessel, damaging the vessel wall and leading to gradual collapse and resorption by the body’s natural processes over time.
In addition to vascular effects, longer wavelengths around and above 615 nm can also reach deeper pigmented structures and hair follicles. In certain treatment strategies, the 615 nm filter can contribute to hair reduction protocols or dual‑benefit sessions that address both redness and texture. The controlled heat delivered at this wavelength also stimulates fibroblasts and collagen remodeling, contributing to improved skin tone, firmness, and fine line reduction over a series of treatments.
Skin Concerns Treated with the LUMENIS 615nm IPL Filter
The LUMENIS 615nm IPL filter sits at an intersection of vascular, pigment, and rejuvenation indications, giving it a versatile role in an IPL practice. Common skin concerns addressed with this filter include:
-
Facial telangiectasias and superficial vascular lesions
-
Diffuse facial redness and erythema related to conditions such as rosacea
-
Red and mixed‑color facial veins around the nose, cheeks, and chin
-
Some forms of sun damage with both redness and pigment
-
Photoaging signs such as mottled tone and early textural changes
-
Certain hair removal applications when combined with appropriate fluence and pulse duration
For many clinics, the 615 nm filter becomes a workhorse for patients whose primary complaint is persistent redness, broken capillaries, or vascular‑dominant rosacea. It is often used after initial pigment‑focused sessions with lower cut‑off filters such as 515 or 560 nm, moving progressively higher as the treatment strategy shifts from epidermal pigment to deeper redness and dermal remodeling.
Benefits of the LUMENIS 615nm IPL Filter for Skin
The benefits of using the 615 nm filter can be grouped into cosmetic outcomes, patient experience, and practice efficiency.
First, cosmetic results often include visible reduction in facial redness, smaller and less prominent vessels, more even skin tone, and a brighter complexion. Patients frequently report that their skin looks clearer and less blotchy, and they often need less concealer or foundation to mask redness.
Second, the treatment experience can be optimized by using a wavelength that balances efficacy with safety. By shifting absorption more toward hemoglobin and slightly away from superficial melanin compared with shorter filters, 615 nm can be advantageous for appropriately selected skin types, potentially lowering the risk of excessive epidermal heating when parameters and cooling are correctly managed. Many systems pair this filter with contact skin cooling to improve comfort and reduce downtime.
Third, from a practice standpoint, the LUMENIS 615nm IPL filter enables clinics to address multiple vascular and rejuvenation concerns with a single platform. This supports bundled treatment packages, cross‑selling of services (such as combining IPL with fractional resurfacing or neuromodulators), and higher utilization rates of existing equipment. A well‑designed vascular and redness protocol built around the 615 nm wavelength can enhance treatment consistency and patient satisfaction, contributing to positive reviews and repeat business.
LUMENIS 615nm IPL Filter in the Lumenis M22 and Stellar M22 Ecosystem
The 615 nm filter does not exist in isolation; it is part of a broader Universal IPL ecosystem. On the Lumenis M22 and Stellar M22 platforms, the Universal IPL handpiece covers a spectrum from roughly 400 or 500 nm up to around 1200 nm, with cut‑off filters inserted to define the effective treatment band.
In this system, filters such as 515, 560, 590, 615, 640, and 695 nm are mapped to treatment presets for pigmented lesions, vascular lesions, and rejuvenation. Lower filters like 515 nm are often used when both melanin and hemoglobin are targeted in lighter skin types, while 560 or 590 nm may be preferred in patients with more dyspigmentation to reduce epidermal absorption. The 615 nm filter sits higher in the series and is frequently associated with vascular presets and certain hair removal settings, where greater depth and hemoglobin selectivity are desired.
The Stellar M22, a newer generation of the M22 platform, incorporates these filters into multi‑sequence pulsing protocols that modulate pulse trains and delays. This allows energy to be delivered more evenly and safely, which can be particularly beneficial when using mid‑ to long‑wavelength filters like 615 nm on sensitive skin or difficult vascular patterns.
Core Technology: Why 615 nm Matters in IPL Physics
From a physics perspective, the 615 nm wavelength range is significant because of how it interacts with hemoglobin and melanin absorption curves and tissue penetration depth. As wavelength increases from the green into the yellow and red spectrum, melanin absorption decreases gradually, while hemoglobin still maintains meaningful absorption. This means that light around 600–620 nm can selectively heat vascular structures without excessively overloading the epidermal melanin, especially in lighter skin tones.
The ability of 615 nm‑dominated light to travel deeper into the dermis allows it to reach mid‑depth vessels and targets that shorter wavelengths might not treat as effectively. At the same time, it avoids some of the deeper penetration characteristics of near‑infrared bands, which are more often reserved for hair removal and deeper thermal effects.
In practical terms, the 615 nm filter provides a balance between depth and selectivity. It supports protocols where the goal is to fade telangiectasias and diffuse redness while still promoting collagen stimulation. When combined with appropriate pulse duration, fluence, and cooling, it can create sufficient photothermal impact in the vessels while protecting surrounding tissue.
Market Trends in IPL and the Role of the 615nm Filter
The global IPL and energy‑based device market has grown significantly due to rising demand for non‑invasive skin rejuvenation, rosacea and redness treatment, and minimally invasive anti‑aging solutions. Clinics increasingly look for versatile platforms that can address pigment, vascular lesions, and texture in one device rather than purchasing separate lasers for each indication.
Within this context, specific filters such as the 615 nm option become strategic assets. Vascular‑dominant concerns, especially rosacea and facial telangiectasias, are a major driver of IPL adoption because they affect a wide age range and often require ongoing management instead of one‑time correction. Patients search for solutions for “broken capillaries,” “facial redness,” and “IPL for rosacea,” and clinics that can demonstrate expertise with vascular‑focused settings like 615 nm are better positioned to capture that demand.
As more studies and clinical reports support the safety and efficacy of multi‑filter IPL systems in different skin types and indications, physicians and aesthetic practices are more willing to invest in platforms like the Lumenis M22 and Stellar M22. The 615 nm filter’s association with vascular and redness outcomes makes it a central tool in protocols marketed as photofacials, IPL skin rejuvenation, and redness‑correcting treatments.
Company Background Integration: ALLWILL’s Role in IPL Device Access
ALLWILL is redefining B2B medical aesthetics by focusing on innovation, trust, and efficiency, offering practitioners transparent support across device sourcing, maintenance, and lifecycle management. Through their Smart Center, vendor management system MET, and the Lasermatch inventory platform, ALLWILL helps clinics access, service, and upgrade IPL systems like the Lumenis M22 and Stellar M22, aligning the right devices and filters with each practice’s clinical and business goals.
Clinical Protocols: When to Choose the 615nm Filter vs Other Filters
In a typical Universal IPL treatment algorithm, filter selection is guided by the patient’s phototype, primary indication, and combination of pigment and vascular involvement. The 615 nm filter is often chosen in scenarios where vascular components dominate or when deeper penetration is necessary.
For example, initial treatments for sun damage and mixed pigment‑vascular photoaging in lighter skin types might start with 515 or 560 nm to tackle superficial brown spots and early redness. As pigment improves, subsequent sessions may emphasize redness and vessels by moving to 590 or 615 nm, allowing more energy to reach capillaries and deeper dermal structures.
When telangiectasias, nose veins, and diffuse cheek erythema are the main complaint, protocols may prioritize 615 nm earlier, sometimes in combination with other filters in a single session to layer effects. Conversely, for purely lentiginous pigment in very light skin with minimal redness, lower cut‑off filters could remain the mainstay, and 615 nm may be used later to boost collagen and refine residual redness.
Hair removal strategies may also leverage the 615 nm filter when the intent is to target follicles at a moderate depth while still benefiting from the vascular and rejuvenation aspects of the wavelength. However, many hair removal protocols incorporate even longer filters such as 645, 695, or 755 nm to further emphasize follicular targeting.
Patient Experience and Safety with 615nm IPL Treatments
The patient experience with LUMENIS 615nm IPL filter treatments typically involves a series of brief light pulses delivered to the treatment area using a cooled handpiece. Patients often describe sensations as a warm snap or flick, similar to a rubber band, and comfort is improved by contact cooling or coupling gel.
Downtime with 615 nm IPL vascular treatments is usually modest. Treated vessels may appear temporarily darker or more prominent before gradually fading over days to weeks. Mild redness and swelling are common but typically resolve within a short period. For pigment‑vascular mixed treatments, superficial darkening or micro‑crusting of pigment may occur, followed by flaking as the skin renews.
Safety is closely tied to proper patient selection, accurate skin type assessment, and adherence to manufacturer guidelines for fluence, pulse duration, and pass count. While longer cut‑off filters like 615 nm are generally more forgiving in terms of epidermal melanin absorption than lower filters, they still require caution in higher Fitzpatrick skin types, tanned skin, or skin recently exposed to sun. Using test spots, conservative starting parameters, and adequate cooling helps minimize risks such as burns, post‑inflammatory hyperpigmentation, or hypopigmentation.
Real User Cases and ROI of Using the 615nm Filter
In practice, clinics integrating the 615 nm filter into their IPL protocols report several common patterns of benefit. Patients with long‑standing facial redness who had not responded fully to topical therapies often experience visible improvement after a series of sessions targeting vessels with 615 nm, enhancing satisfaction and loyalty.
For a typical photorejuvenation patient, a protocol combining initial pigment‑dominant sessions and subsequent vascular‑dominant sessions, including 615 nm treatments, may yield a more even skin tone and smoother texture within three to five visits. This layered approach can increase the perceived value of a package, supporting premium pricing and encouraging patients to commit to full series rather than single sessions.
From an ROI standpoint, the 615 nm filter helps clinics diversify their IPL revenue beyond brown spots and sun damage. By positioning services as solutions for rosacea, redness, capillaries, and collagen stimulation, practices can capture an additional segment of patients seeking long‑term management of chronic vascular issues. Increased word‑of‑mouth from rosacea and redness patients who see real change can also drive organic referral growth, amplifying the financial impact of the filter investment.
Top Lumenis IPL Filters and Use Cases
Below is an adaptive overview of commonly used Universal IPL filters on Lumenis platforms and where the 615 nm option fits within that spectrum.
| Filter (nm) | Primary Indications | Key Advantages | Typical Use Cases |
|---|---|---|---|
| 515 | Superficial pigment and mixed pigment‑vascular in light skin | Strong melanin and hemoglobin absorption, good for early photoaging | Sun spots, freckles, initial photofacials in fair skin |
| 560 | Pigment focus with reduced epidermal load | Safer in mild dyspigmentation, still addresses some redness | Lentigines, uneven tone, lighter redness |
| 590 | Transition filter for pigment and vessels | Balances pigment and vascular targets, moderate depth | Photoaging with both spots and redness |
| 615 | Vascular lesions, redness, some hair, rejuvenation | Strong hemoglobin targeting with deeper penetration | Rosacea, telangiectasias, diffuse erythema, redness‑focused photofacials |
| 640/695+ | Hair reduction and deeper targets | Deeper follicular penetration, less melanin competition | Hair removal, deeper dermal heating and collagen stimulation |
This matrix underscores how the 615 nm filter complements other filters in building comprehensive IPL treatment menus, rather than replacing them.
Competitor Comparison Matrix: 615nm IPL Filter vs Other Vascular Technologies
Although the LUMENIS 615nm IPL filter is powerful, clinics often compare it to dedicated vascular lasers and competing IPL systems to decide which technology fits their strategy. The following table summarizes key differences between 615 nm IPL on Lumenis platforms and common alternatives.
| Technology/System | Wavelength Strategy | Strengths for Vascular and Redness | Limitations |
|---|---|---|---|
| Lumenis M22/Stellar M22 with 615 nm filter | Broad spectrum IPL shaped by 615 nm cut‑off | Versatile, treats vessels, pigment, and rejuvenation in one platform; adjustable parameters; multitarget protocols | Less wavelength purity than single‑wavelength lasers; operator‑dependent outcomes |
| Pulsed dye laser (e.g., 585–595 nm) | Narrowband vascular laser | Highly selective for hemoglobin, strong for resistant telangiectasias and port‑wine stains | Less versatile for pigment and texture; often higher cost and downtimes |
| KTP laser (e.g., 532 nm) | Green vascular wavelength | Excellent for superficial small vessels and pigmented lesions | Shallower penetration; increased melanin absorption, requiring more caution in darker skin |
| Other IPL platforms without advanced filter sets | Broad spectrum IPL with limited cut‑off options | Entry‑level solution for general photorejuvenation | May lack dedicated vascular filters like 615 nm, limiting customization and fine‑tuning |
For many practices, integrating Lumenis IPL with the 615 nm filter provides a flexible, multi‑indication option that complements rather than replaces more specialized lasers.
Optimizing Parameters and Treatment Strategy with the 615nm Filter
To get the best results from the LUMENIS 615nm IPL filter, practitioners fine‑tune several variables: fluence, pulse duration, pulse trains, and cooling. Fluence must be high enough to coagulate target vessels but not so high that it causes unnecessary epidermal injury. Pulse duration and multi‑sequence pulsing can help match energy delivery to the thermal relaxation time of the vessels, allowing efficient heating while keeping the epidermis relatively safe.
Spot size selection also affects depth and coverage. Larger lightguides are useful for treating broad areas of diffuse redness and photodamage, while smaller tips can target individual vessels around the nose or other focused points. Adjustments may be needed based on anatomical area, skin thickness, and vessel caliber.
Pre‑ and post‑treatment care is another crucial component. Patients should be instructed to avoid sun exposure and self‑tanning products before and after sessions to reduce risk of pigmentary side effects. Proper use of broad‑spectrum sunscreen, gentle skincare, and avoidance of irritants supports smoother healing and better long‑term outcomes.
Future Trends: The Evolving Role of the 615nm Filter in IPL
Looking ahead, the role of the LUMENIS 615nm IPL filter in skin treatments is likely to expand as protocols become more data‑driven and personalized. With greater emphasis on combination therapies, many practices will integrate 615 nm IPL vascular sessions with topical cosmeceuticals, oral rosacea management, LED light treatments, and injectable options to deliver layered, comprehensive care.
Advances in software, imaging, and AI‑assisted treatment mapping may allow clinicians to customize 615 nm treatment patterns based on real‑time visualization of vessels and erythema. This could refine energy delivery and reduce overtreatment, particularly in sensitive or complex cases.
As clinical evidence accumulates for IPL photorejuvenation, including studies on newer systems like the Stellar M22 with advanced pulsing modes, the 615 nm filter is likely to be highlighted more prominently in protocols for redness‑dominant photoaging and chronic facial erythema. Clinics that understand how to integrate this wavelength intelligently into their treatment menus will be positioned to serve a growing patient base seeking safe, effective, non‑ablative rejuvenation.
Relevant FAQs About the LUMENIS 615nm IPL Filter
What is the main purpose of the LUMENIS 615nm IPL filter?
The primary purpose of the 615 nm filter is to target vascular lesions and facial redness while also supporting skin rejuvenation and, in some protocols, selective hair reduction.
How is the 615 nm filter different from 515 or 560 nm filters in IPL?
The 615 nm filter allows longer wavelengths that penetrate deeper and emphasize hemoglobin absorption, while 515 and 560 nm filters emphasize more superficial pigment and mixed pigment‑vascular concerns.
Is the LUMENIS 615nm IPL filter safe for all skin types?
It is generally best suited for lighter skin types and carefully selected patients with minimal recent sun exposure; higher skin types require conservative parameters and an experienced provider to reduce risk.
How many treatments are usually needed with the 615 nm filter for redness?
Many patients need a series of multiple sessions spaced several weeks apart, with visible improvements often appearing after the first few treatments and continuing to build over time.
Can the 615 nm filter be combined with other IPL filters in one session?
Yes, many protocols combine different filters in the same session, using shorter cut‑off filters first for pigment and then higher ones like 615 nm to focus on vessels and deeper rejuvenation.
What downtime can patients expect after 615 nm IPL treatments?
Downtime is typically minimal, with temporary redness, mild swelling, and possible darkening of vessels or pigment that gradually resolves as the skin heals.
Three‑Level Conversion Funnel CTAs for Clinics and Practitioners
If you are exploring how to use the LUMENIS 615nm IPL filter to manage facial redness, telangiectasias, or rosacea in your practice, begin by evaluating your current patient base and identifying those who would benefit from vascular‑focused IPL protocols. This initial assessment helps you understand demand and design appropriate consultation scripts and pricing.
Next, refine your treatment protocols by mapping the role of 615 nm within your existing IPL filter strategy, from first‑line pigment sessions to later vascular‑dominant visits. Train your team on parameter selection, safety considerations, and before‑and‑after photography so that every provider can deliver consistent, reproducible results that showcase the strengths of the 615 nm wavelength.
Finally, integrate the LUMENIS 615nm IPL filter into your broader service offerings by creating redness and rosacea programs, photorejuvenation packages, and maintenance plans that emphasize long‑term outcomes. Communicating these structured solutions to patients in consultations, digital content, and in‑clinic materials can turn the 615 nm filter from a technical feature into a visible, trusted component of your overall skin health strategy.
